Linear Scale Micrometer Ruler 1mm/0.01mm

Name: Linear Scale Micrometer Ruler 1mm/0.01mm
Brand: Brand
SKU: 500828
Price: 198 USD
Availability: InStock

$198.00

Prices valid in USA, Canada, and PR only.

Order code

500828

Prices valid in USA, Canada, and PR only.

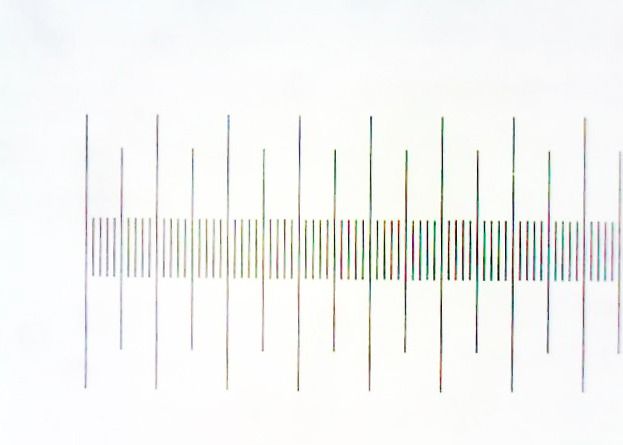

The Linear Scale Micrometer Ruler for microscopes is a precise measuring tool designed for accurate calibration and measurement under the microscope. This 1x3" slide features a 1mm linear target etched into the glass with markings down to 10μm, offering a resolution of 1mm/100/0.01mm. It includes marks at 50μm and 100μm for easy reference. This scale is suitable for use with upright microscopes at magnifications of 40X, 100X, and 400X, making it ideal for precise measurements in biological and materials science applications.

Details

More Information

Specifications

Prices valid in USA, Canada, and PR only.

Features

1X3" slide with 1mm linear target etched into the glass down to 10μm marks
Linear 1mm/100/0.01mm
Marks at 50 and 100μm
Suitable for upright microscopes at 40X, 100X and 400X

More Information
SKU	500828

Type	Description
Micrometer Type	Line
Micrometer Dimensions	75x25x1.5mm
Scale Range	Linear 1mm/100/0.01mm
Background Type	Positive
Material	Glass
Net Weight	0.01kg (0.02lbs)
