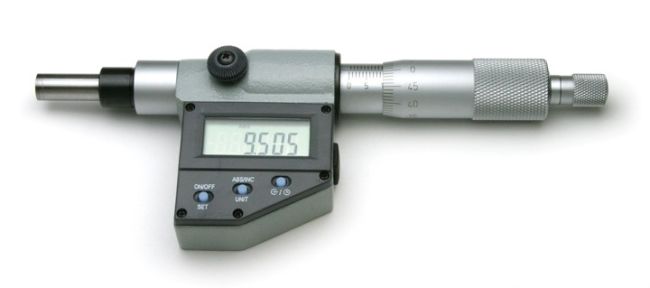

Non-Rotating Spindle Digital Micrometer Head
$377.00
Prices valid in USA, Canada, and PR only.
Order code
502102
Prices valid in USA, Canada, and PR only.
Build your own precision micro-positioning device
The new non-rotating spindle digital micrometer head allows you to create your own micro-positioning instrument. With micron-level accuracy, it gives higher precision than a normal micromanipulator. Since the spindle does not rotate as it advances, instruments can be directly attached without the need for a complicated decoupling device. The digital display eliminates the need to squint at the notational scale. Readings can be clearly seen in either inches or millimeters. You can read both absolute position and the increment relative to a previously chosen point.
| SKU | 502102 |
|---|
Related Articles
| Total Travel Distance | 25 mm |
| Resolution | 0.001 mm |
| Accuracy | ±0.003 mm |
| Spindle Diameter | 7.5 mm |
| Mounting | 12 x 10 mm |
| Total Length | 166 mm |
| Measurement Mode | Absolute and incremental |
| Digital Readout | mm or inches |
| Analog Readout | mm |
| Environmental Protection | IP54 |
| Shipping Weight | 0.51 kg (1.12 lb.) |
| Data Output | RS232 |
