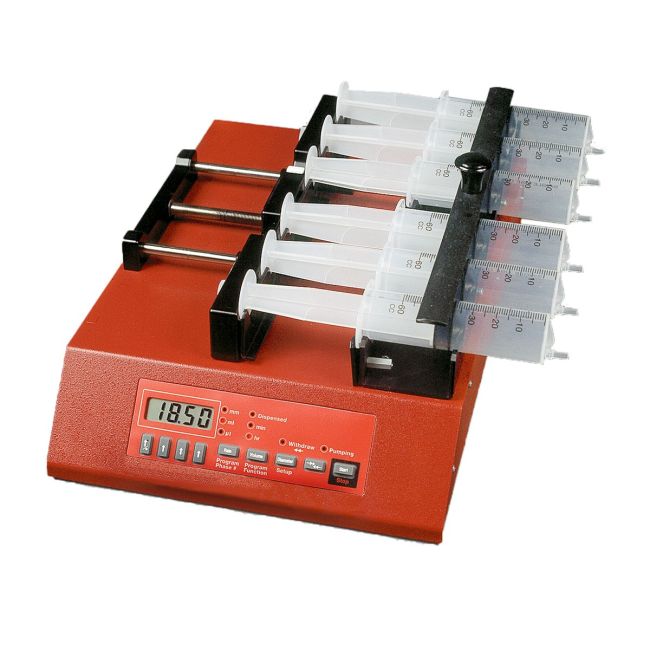

Multi-Barrel Programmable 6 Syringe Pump

Features

• Cost-effective
• Program sequences without a computer
• Rich command set
• RS-232 and TTL control
• Accepts syringe sizes: 1-60mL, or 0.5-5 uL
• Multi-Barrel pump for up to 6 syringes

Benefits

• Automatic dispensing of small volumes
• Very precise flow rate control
• Hands-free operation with foot switch

Applications

• Drug administration
• Chemical applications with slow incorporation of fixed volumes of fluids

The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels. The performance characteristics are admirable, considering the price.

For the budget minded lab looking for a versatile and reliable pump, the Aladdin series is an excellent option.

The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo and Air-Tite.

The AL-6000 has the following additional features:

• Holds up to 6 syringes up to 60mL each
• Infusion rates: 0.452μL/hr (1cc syringe) to 1451mL/hr (60cc syringe)
• Fully programmable, automate with a computer (if desired)
• Up to 41 pumping phases can be programmed to allow:pumping rate change
  • set dispensing volumes
  • pause
  • external signals
  • set alarms
• Accuracy +/- 1%
• 2-year warranty
