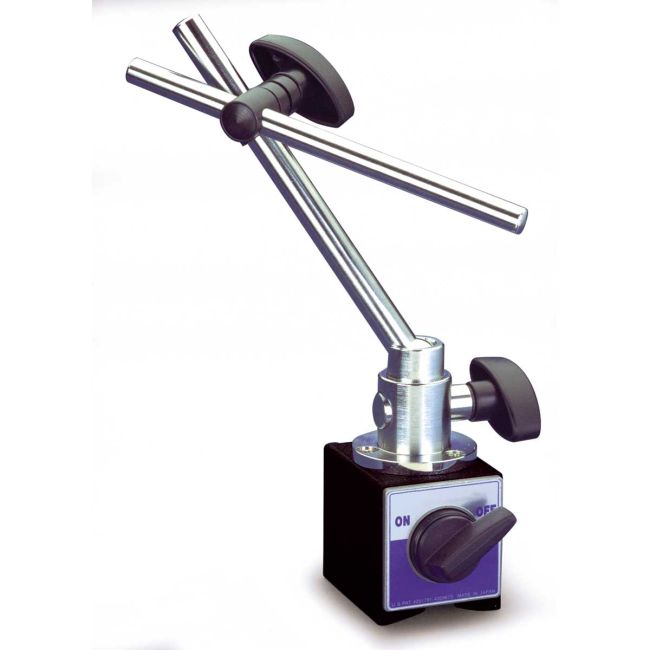

Magnetic Stand with Balljoint
$250.00
Prices valid in USA, Canada, and PR only.
Order code
M8
Prices valid in USA, Canada, and PR only.
The base of each stand exerts a powerful magnetic force that holds it solidly on ferrous metal surfaces - even vertically or upside down
A ball joint at the base of the main post allows 360° rotation, offering considerable versatility. The second arm adopts angles up to 75°. (Optional M5 10 mm clamp should be added for use with M3301, DC3001, MD4 and MMJ manipulators.)
Prices valid in USA, Canada, and PR only.
Features
- Main post rotates 360°
- Main Post Diameter: 12 mm
- Sub Post Diameter: 10 mm
| Type | Description |
| Base | 50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0 x 2.3 x 2.2 in.) |
| Vertical Holding Power | 80 kgf (176 lb. force) |
| Main Pole | diameter: 12 mm (0.47 in.) length: 194 mm (7.6 in.) |
| Sub Pole | diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.) |
| Clamp Hole | Adjustable from 4.5 mm to 6.5 mm |
| Weight | 1.8 kg (4 lb.) |
| SKU | M8 |
|---|
