Precision Inverted Microscope, Trinocular
$3,495.00
Prices valid in USA, Canada, and PR only.
Order code
PIMT201
Prices valid in USA, Canada, and PR only.
Excellent for video recording and photography
The PIMT201 is an affordable inverted microscope for pathologists, biologists and medical researchers. Able to perform intricate and varied applications for vital tissue cultures, it is perfect for observation and education or for professional research in a clinical lab. naturally choose this microscope.
Accessories included: Green, blue and neutral filters, dust cover, immersion oil, manual and warranty card.
Prices valid in USA, Canada, and PR only.
Features
- Phase contrast at 10X and 20X
- 160 x 260 mm stage
- Infinity Optical System
- Trinocular head for attaching camera
- Abbe condenser
- Coarse and fine focusing
- Multiple objectives included
Benefits

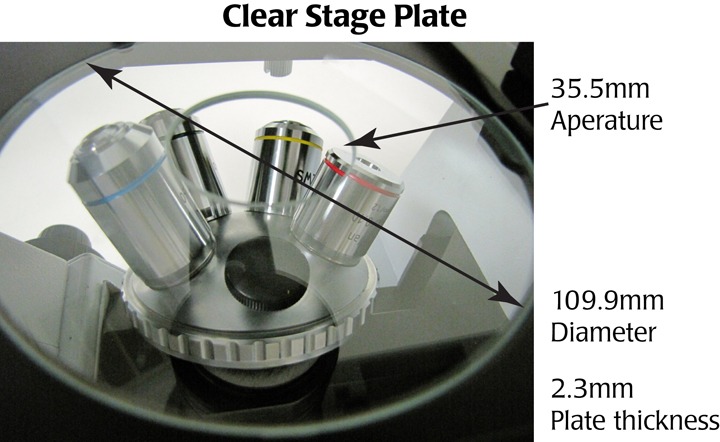

- Stage includes inserts for holding standard culture dishes and slides
- Halogen illumination, offering an image with true to life coloring
- Fixed Stage—optics move during focusing—excellent for patch clamp and brain slice recording
Applications
- Video recording/photography
- Patch clamping
- Brain slice recording
Focus
Coarse adjustment: range of +8 to –3mm. Fine adjustment: 0.002mm
Camera to Microscope Configurations
Camera to Microscope Connections
| SKU | PIMT201 |
|---|
| Objective Distance | NA | Working |
| Plan-achromatic 4X | 0.1 | 25.2mm |
| Plan-Achromatic Phase Contrast 10X | 0.25 | 11mm |
| Plan-Achromatic Phase Contrast 20X | 0.4 | 6.0mm |
| Plan-Achromatic 40X | 0.6 | 3.2mm |
| Trinocular Head Specifications | |
| EYEPIECES | EW 10× /22 extra wide field eyepieces |
| CONDENSER | Abbe condenser with 10× / 20× phase |
| FOCUS | Coarse adjustment range +8 to -3 mm Fine adjustment: 0.002 mm |

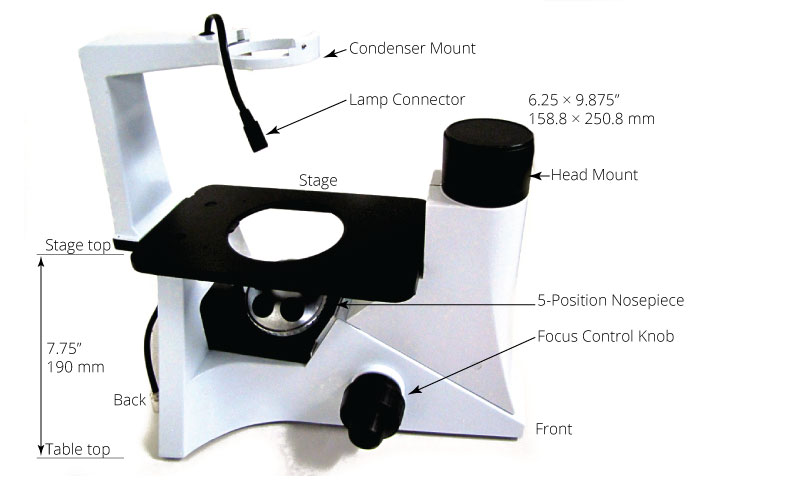

| STAGE | 160×250 mm |

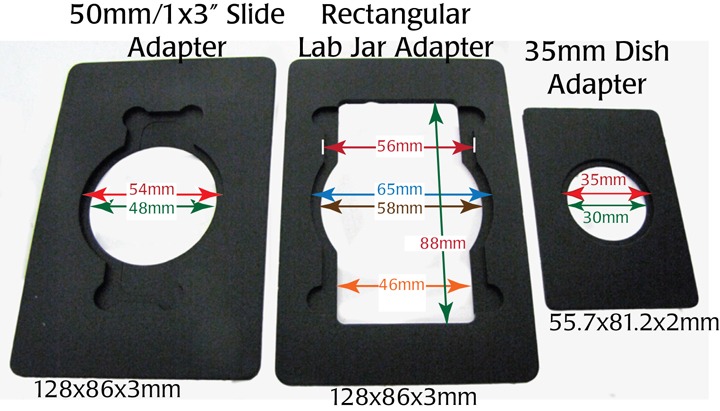

| INSERTS | 35 mm round, 50 mm round, 87×46 rectangular |
| STAGE DRIVE | Coaxial drive controls |
| MECHANICAL STAGE | X-Y coaxial control 120×78mm range of traverse |
| NOSEPIECE | Quintuple nosepiece |
| OBJECTIVES | Infinity optical system Plan 4× and 40×, Plan Phase 10× and 20× |
| ILLUMINATION | 6V/30 W halogen bulb Centering eyepiece for phase objective |
| FIXED STAGE | Optics move during focusing—excellent for patch clamp and brain slice recording |
| WEIGHT | 24 lb. |
