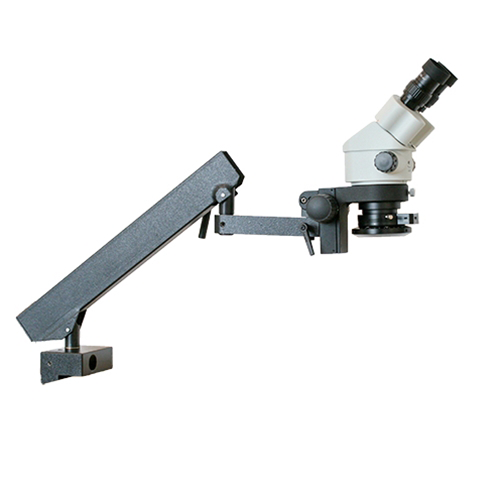

PRO PZMV Binocular Articulating Stereoscope with Ring Light

Features

• Viewing Head: Available in binocular or trinocular. *The PRO-PZMV-B-ART is a binocular model. 45º inclined Greenough stereo microscope body. Viewing head rotates 360°. Interpupillary distance adjustment from 55mm - 75mm. Trinocular version has Photo port 50/50 division to the left and integrated 0.5x c-mount adapter.
• Detent: Click stops at 0.8x, 1x, 2x, 3x, 4x for repeatable measuring.
• Eyepieces: Includes widefield 10x / 23mm focusing eyepieces. Eyepieces accept 26mm diameter reticle. 16x/14mm eyepieces are available and can be ordered below.
• Objective Lenses:  Zoom range of 0.8x - 4x.
• Zoom Ratio:  5:1
• Total Magnification:  8x - 40x. For alternate magnifications, eyepieces can be changed and an auxiliary lens can be added to the stereo microscope. View magnification chart below for options. *Maximum resolution 200 Lp/mm - 2.5µm.
• Stand: Extended articulated arm with option for table mount or table clamp mount. Table mount is drilled directly into table, dimensions of mount base: 110 x 110mm; table clamp mount dimensions: 104 x 77 x 136mm.
• Working Distance: 110mm.
• Focusing: Coarse focusing.
• Illumination:  Includes a LED ring light with 72 cool LEDs. Four quadrant zones can be turned on or off for reducing glare. Includes ring light adapter.
• Size & Weight:  Articulated arm stand is 4" x 17.7" x 12.6".  Weight is 35lb.
• Warranty: 1 Year Warranty.
