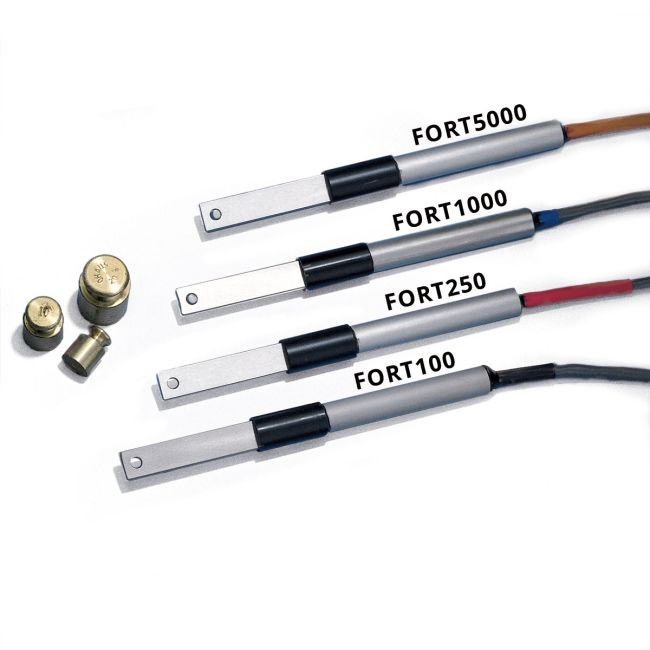

Large FORT Force Transducer

As low as $582.00

Only %1 left

Prices valid in USA, Canada, and PR only.

Order code

Price range: $582 - $695

Prices valid in USA, Canada, and PR only.

This rigid-lever force transducer transforms applied force into proportional voltage. Using balanced strain gauges, FORT transducers produce linear output voltage vs. applied force input with very little deflection. To use, clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

The transducer is highly resistant to mechanical damage. Its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.

Prices valid in USA, Canada, and PR only.

Features

Transform applied force into proportional voltage

Options

Order code	Size
FORT5000	5000g
FORT1000	1000g
FORT250	250g
FORT100	100g

The transducer is highly resistant to mechanical damage. Its body is machined from aluminum and mounts to a standard ring stand or, with the handle removed, clamp mounts.

How to use

Clamp the handle of the FORT transducer in a horizontal position and apply the forces to be measured to a rivet or hook mounted in the hole at the end of the flat sensing leaf.

More Information
SKU	VAR-2858

FORT Instruction Manual

	FORT5000	FORT1000	FORT250	FORT100
FORCE RANGES, FULL SCALE	5000g	1000 grams	250g	100g
OUTPUT SENSITIVITY (± 10%)	0.38 μV/V/g	0.84 μV/V/g	3 μV/V/g	7 μV/V/g
INPUT & OUTPUT RESISTANCE	350 Ω
RESOLUTION	0.01% of full scale force
RESONANT FREQUENCY	60 Hz	300 Hz	300Hz	300Hz
LINEARITY ERROR	Less than 0.1% of full scale
MAX. OPERATING VOLTAGE	10 V AC or DC
MAXIMUM APPLIED FORCE	3x rated full scale force
DRIFT	thermally compensated
DIMENSIONS	0.3" inch diam — 4 in. (7.6 mm diam— 10.2 mm)
WEIGHT (excluding cable)	0.3 oz (8 g)
