Mini Peristaltic Pump
This compact, lightweight peristaltic pump fits just about anywhere. It can be mounted directly on the bench, in a regular rack or to a post. The speed can be adjusted from 1 to 50 rpm. With recommended silicone tubing, the volume can be set from 0.06 to 14.0 mL/min. The MiniStarâ„¢ also features a hand held remote control that allows you to start and stop the pump, purge or adjust its speed and direction.
Lightweight, portable Mini★Star™
- Flow Range: 0.06-14.0mL/min
- Speed: 1-50.0 rpm, forward/reverse

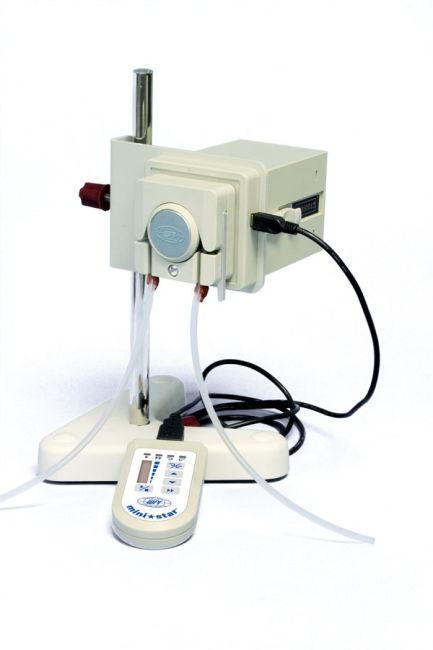

- MINISTAR is sold separately with out the stand and clamp shown in the image; 504011 system includes the MINISTAR, stand and clamp
- Includes tubing
Options
| Order code | Description |
| MINISTAR | MINISTAR is sold separately without the stand and clamp. |
| 504011 | 504011 system includes the MINISTAR, stand and clamp |
Benefits
- Remote control (wired)
- Small footprint
- Quiet operation
- Compact and easily transported
Applications
- Small volume chemical transfer
- Pharmaceutical processing
- Sample perfusion
This compact, lightweight peristaltic pump fits just about anywhere. It can be mounted directly on the bench, in a regular rack or to a post. The speed can be adjusted from 1 to 50 rpm. With recommended silicone tubing, the volume can be set from 0.06 to 14.0 mL/min. The MiniStarâ„¢ also features a hand held remote control that allows you to start and stop the pump, purge or adjust its speed and direction.
See how to setup your Ministar Peristaltic Pump
The MINISTAR pump works well with both the LWCCs and the LWCC Injection System (89372).
LWCC
The image below shows a typical setup with an LWCC. You see the sample injector kit (58006) and the MINISTAR pump connected with aLiquid Waveguide Capillary Cell(flow cell).
LWCC Injection System
The LWCC Injection System (89372) works well with a MINISTAR pump as shown below.
| SKU | VAR-3125 |
|---|
| Channel | 1 |
| Speed | 1-50.0 rpm, forward/reverse |
| Flow range | 0.06~14.0 mL/min |
| Resolution | 1 rpm (0.1 rpm computer control) |
| Speed control | Remote control |
| Display | Indicators for status and speed |
| Power | 12 V DC (110/220 VAC adapter incl.) |
| Working condition | Temperature 0-40°C, humidity < 80% |
| Tubing | Two-stop Silicone |
| Tubing: Wall Thickness | 0.8~1.0 mm |
| Tubing: Outer Diameter | ≤4.8 mm |
| Dimension of driver | 135 x 72 x 72 mm (LWH) |
| Dimension of remote control | 105 x 5 x 16 mm (LWH) |
| Weight of driver | 0.5 kg |
