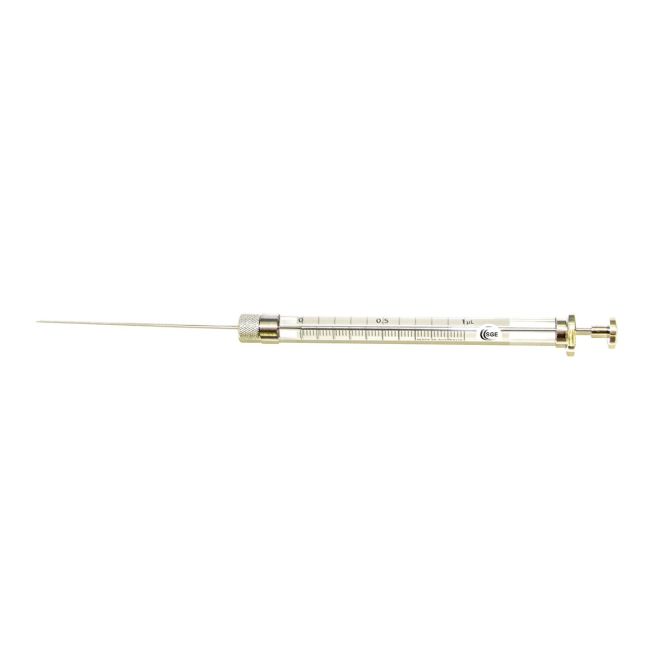

SGE Syringes with Replaceable Beveled Needles

As low as $43.90

Only %1 left

Prices valid in USA, Canada, and PR only.

Order code

Price range: $43 - $160

Prices valid in USA, Canada, and PR only.

A 20° bevel tip is the standard general purpose needle tip style supplied with SGE syringes. The style is designed for optimum septum penetration and prevention of septum coring.

Details

More Information

Prices valid in USA, Canada, and PR only.

Features

SGE Syringe with Replaceable Beveled Needles

Options

Order code	Volume	Needle Dimensions	O.D.	ID of Syringe Barrel	Scale Length	UMP3	Replacement Needle	Tip style
SGE0005RN*	0.5 µL	23g (0.63 mm), 70mm long	8.0 mm	-	54.1 mm	Y	RN0005 (pack of 1)	Bevel
SGE001RN*	1.0 µL	26g (0.47 mm), 70mm long	8.0 mm	-	54.1 mm	Y	RN001 (pack of 1)	Cone
SGE005RN	5 µL	23g (0.63 mm), 70mm long	8.0 mm	0.343 mm	54.1 mm	Y	RN005 (pack of 1)	Bevel
SGE010RNS	10 µL	26g (0.47mm), 50mm long	8.0 mm	0.485 mm	54.1 mm	Y	RN010 (pack of 5)	Bevel
SGE025RN	25 µL	25g (0.50mm), 50mm long	8.0 mm	0.728 mm	60 mm	Y	RN025 (pack of 5)	Bevel
SGE050RN	50 µL	25g (0.50mm), 50mm long	8.0 mm	1.030 mm	60 mm	Y	RN025 (pack of 5)	Bevel
SGE100RN	100 µL	25g (0.50mm), 50mm long	8.0 mm	1.457 mm	60 mm	Y	RN025 (pack of 5)	Bevel

Purchase of each syringe includes one needle already attached to it.

Tip styles

- Cone needle tip, the cone shape needle has been specifically developed to withstand the multi injection demands of Autosamplers.

- Bevel needle tip, a 20° bevel tip is the standard general purpose needle tip style supplied with SGE syringes. The style is designed for optimum septum penetration and prevention of septum coring.
