Pressure Manometer

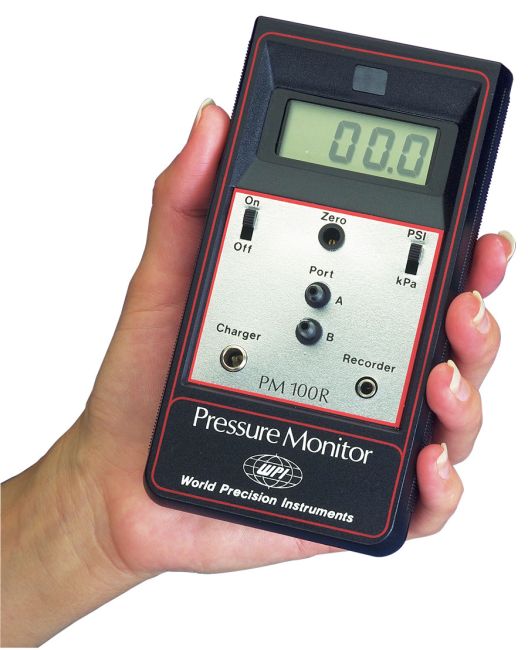

Hand-held and battery operated, PM Series pressure manometers monitor vacuum and pressure in non-corrosive gases. An integral transducer and digital display allow easy and accurate pressure readings. Three versions measure pressures in the range of ±1 PSI, ±15 PSI or ±100 PSI. A range switch allows measurement in units of PSI or kPa for the 100 PSI version, and PSI or mmHg for the 15 psi version. Pressure can be read on the built-in LCD display or relayed to a chart recorder, oscilloscope, or computer.
For measuring hydrostatic pressures
- Measure vacuum and pressure in gases
- Ranges available: ±1 PSI, ±15 PSI, ±100 PSI
- Measure in PSI or kPa on the 100 PSI unit or PSI and mmHg on the 15PSI unit
- Battery powered
- Includes tubing and mini-phone to BNC cable
Options
| Order code | Description |
| SYS-PM01D | Pressure Manometer (1 psi) |
| SYS-PM01R | Pressure Manometer (1 psi), Rechargeable* |
| SYS-PM015D | Pressure Manometer (15 psi) |
| SYS-PM015R | Pressure Manometer (15 psi), Rechargeable* |
| SYS-PM100D | Pressure Manometer (100 psi) |
| SYS-PM100R | Pressure Manometer (100 psi), Rechargeable* |
* Rechargeable versions come with nickel/cadmium battery and charger
Benefits
- Easy and accurate measurements
Applications
- Measure pressure of non-corrosive gases
Hand-held and battery operated, PM Series pressure manometers monitor vacuum and pressure in non-corrosive gases. An integral transducer and digital display allow easy and accurate pressure readings. Three versions measure pressures in the range of ±1 PSI, ±15 PSI or ±100 PSI. A range switch allows measurement in units of PSI or kPa for the 100 PSI version, and PSI or mmHg for the 15 psi version. Pressure can be read on the built-in LCD display or relayed to a chart recorder, oscilloscope, or computer.
PM Series pressure manometers come with 4 feet of 1⁄8-inch ID soft vinyl tubing. A mini-phone-to-BNC cable for the recorder output is also available (CBL102). Standard versions are equipped with a nine-volt alkaline battery.
| SKU | VAR-3529 |
|---|
| PRESSURE MANOMETER SPECIFICATIONS | |||
| PM01 | PM015 | PM100 | |
| PRESSURE RANGE | ±1 psi (±52 mm Hg) | ±15 psi (±775 mm Hg) | ±100 psi (±690 kPa) |
| PROOF PRESSURE | 20 psi (1035 mm Hg) | 30 psi (1550 mm Hg) | 150 psi (1035 kPa) |
| RESOLUTION | 0.001 psi (0.1 mm Hg) | 0.01 psi (1 mm Hg) | 0.1 psi (1 kPa) |
| OUTPUT | 1 V/psi | 100 mV/psi | 10 mV/psi |
| OUTPUT RANGE | ±1.0 V | ±1.5 V | ±1.0 V |
| LINEARITY | 0.5% full-scale | ||
| TEMPERATURE EFFECT | 1.0% full-scale (0-70°C) | ||
| ZERO | Screwdriver-adjust | ||
| RESPONSE TIME | 30 ms | ||
| POWER | Nine-volt battery | ||
| BATTERY LIFE | Alkaline, 200 hours; rechargeable, 25 hours | ||
| RECORDER OUTPUT | Mini-phone jack, 0.141 inch (3.5 mm) | ||
| OUTPUT IMPEDANCE | 1 kΩ | ||
| PNEUMATIC CONNECTORS | Barbed, for 1/8-inch or 3/16-inch ID soft tubing | ||
| DIMENSIONS | 3 x 6 x 1 inches (8 x 15 x 4 cm) | ||
| SHIPPING WEIGHT | 3 lb. (1.4 kg) | ||
