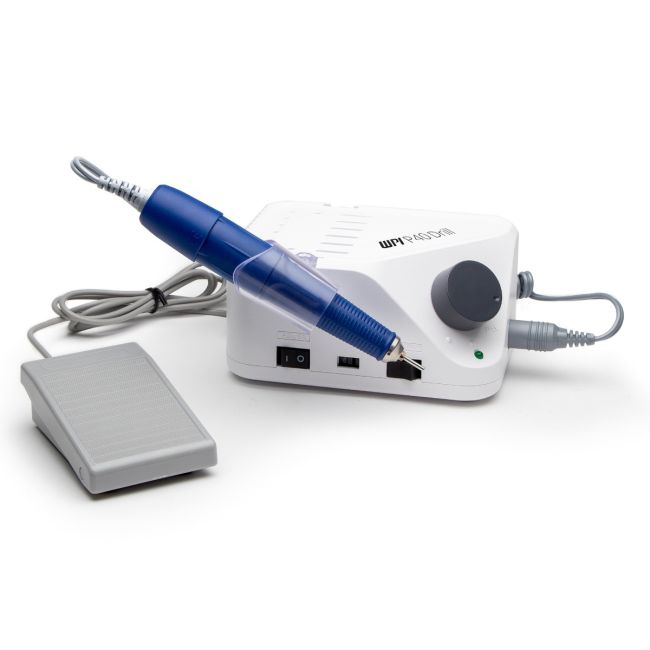

WPI P40 Micro Drill System, 110-220V

Options

Benefits

• Removable nose cone that can be cleaned and sterilized
• Consistent power for the duration of its use
• Variable speeds so you control the amount of heat generated
• Switchable power supply from 110V to 220V
• Handpiece holder allows for a solid grip on the handpiece

This line-powered microdrill will make easy work of grinding, finishing, cutting and drilling bone, teeth and other material. The high-torque 40,000 RPM (maximum) motor is quiet and has minimal vibration, which reduces wear on the motor and provides greater comfort for you. It also features a forward and reverse switch.  The “E Type” handpiece is ergonomically design for ease of use manually or on a stereotaxic application.  The handpiece has a removable nose cone that can be cleaned and sterilized. It accepts 3/32” and 2.35mm bur shanks. Unlike battery-powered drills, this unit maintains consistent power for the duration of use. The wide range of speeds allows you to control the amount of heat generation.

Optional Drill Bits and Kits

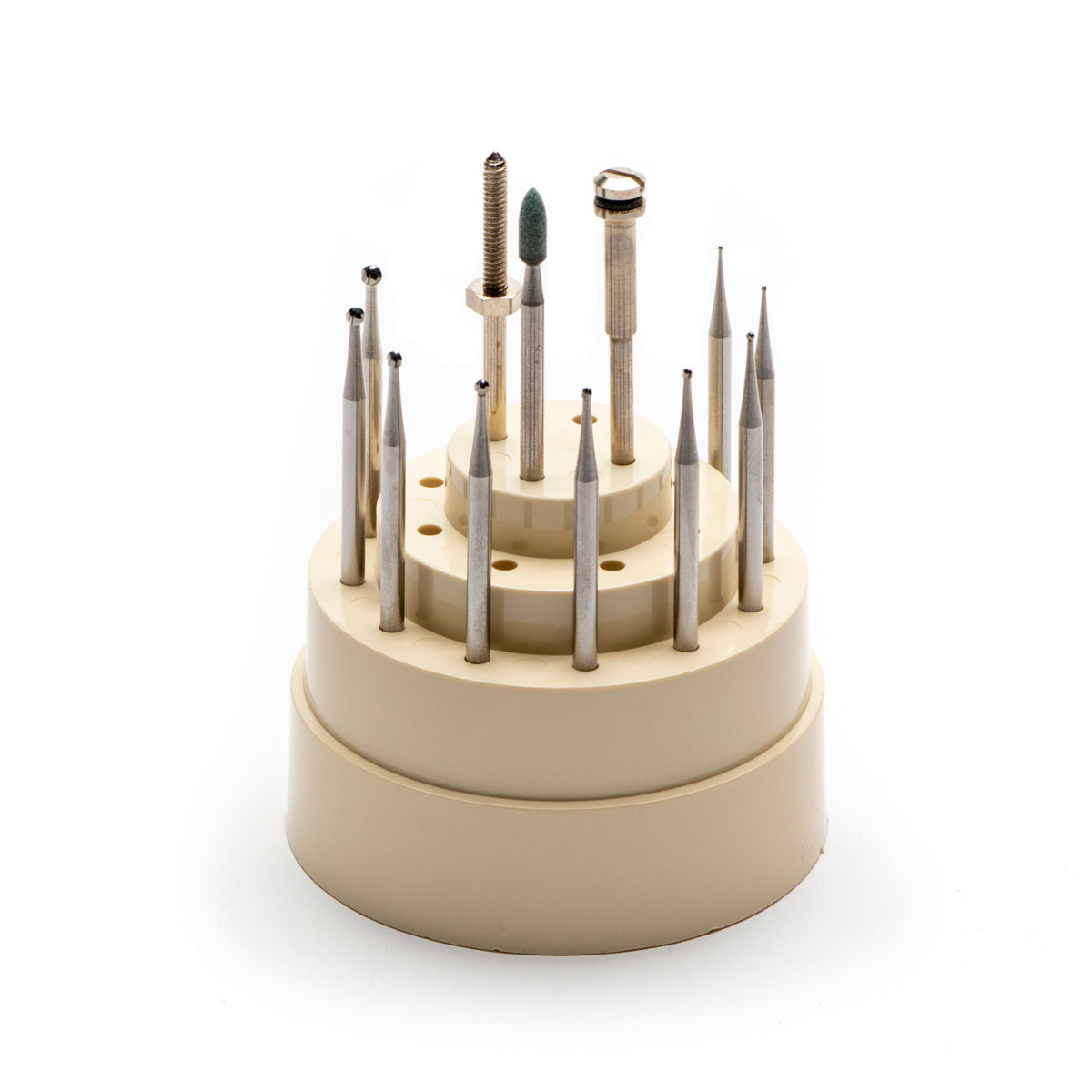

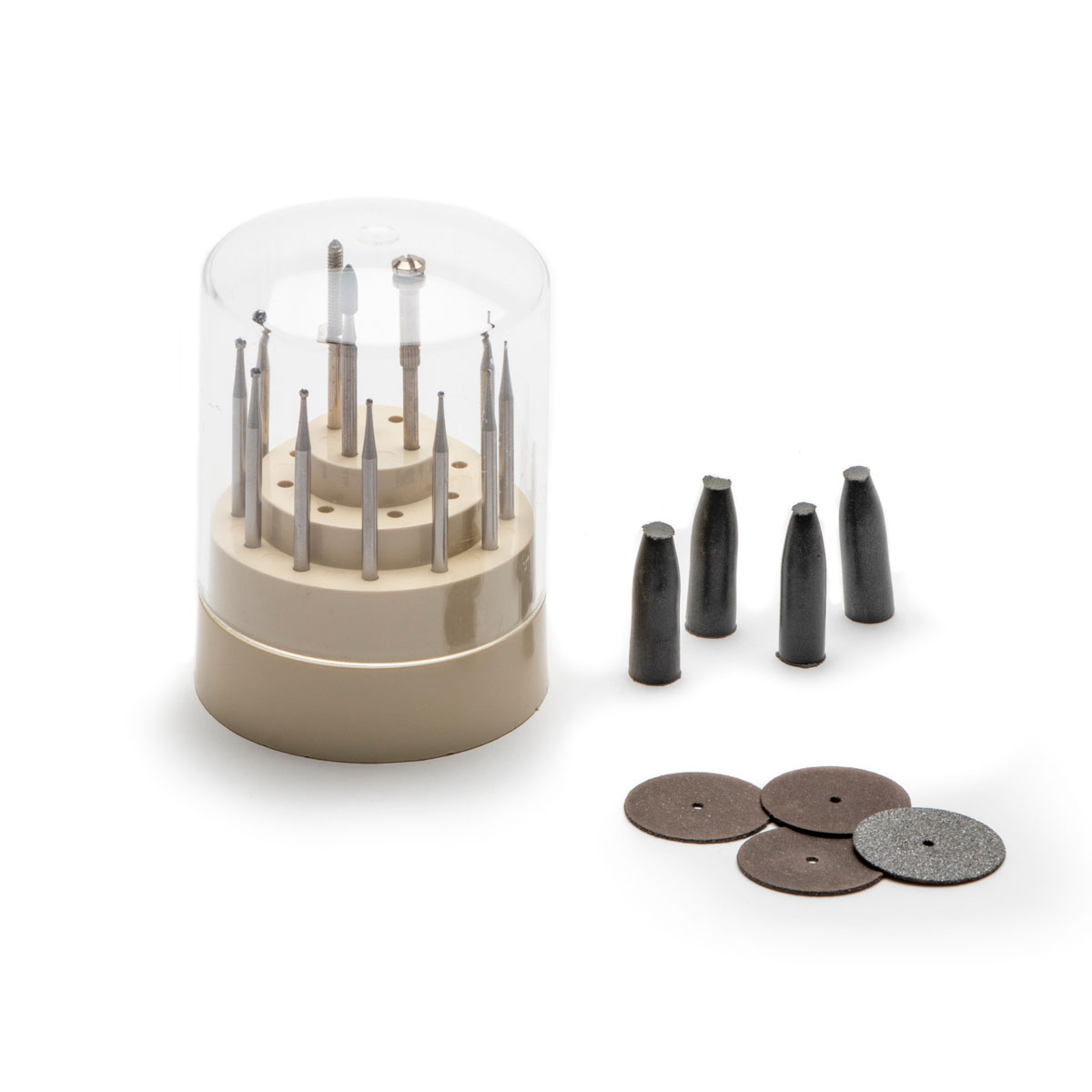

The startup kit (shown below) includes cutoff disks, burs, mandrel, and an accessory holder stand.

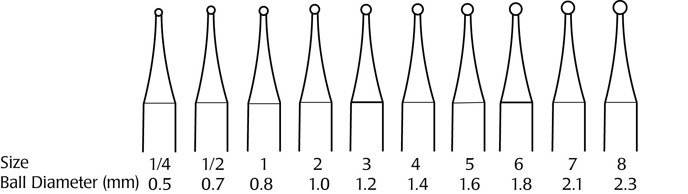

• 501853 Ball Mill, Carbide, #1, 0.031” diameter (pkg. of 5)
• 501854 Ball Mill, Carbide, #2, 0.039” diameter (pkg. of 5)
• 501855 Ball Mill, Carbide, #3, 0.047” diameter (pkg. of 5)
• 501856 Ball Mill, Carbide, #4, 0.055” diameter (pkg. of 5)
• 501857 Ball Mill, Carbide, #5, 0.063” diameter (pkg. of 5)
• 501858 Ball Mill, Carbide, #6, 0.071” diameter (pkg. of 5)
• 501860 Ball Mill, Carbide, #1/4, 0.019” diameter (pkg. of 5)
• 501861 Ball Mill, Carbide, #1/2, 0.027” diameter (pkg. of 5)
• 503563 Drill Accessory Starter Kit, with Accessory Stand, Screw Mandrel, Threaded Mandrel, Abrading Tip, Rubber (x2), Cutoff Disks (x4), Ball Mill Pack (Sizes #1 - #7, and #1/2), and a Stone Abraiding Tip

WPI P40 Microdrill can be mounted in the WPI stereotaxic frames using the 505247 Stereotaxic Omni Drill / WPI P40.
