Kit Reservoir: Tank

505931

Kit Reservoir: Tank, Large - 2 ports 100mL

Elveflow Delrin Cap with 2 flat bottom 1/4-28 ports (x1)

• 100 mL Borosilicate Glass Bottle with DIN Thread GL45 (x1)
• PE protective net

NOTES:

• 1/4-28 Fittings not included
• Max. recommended pressure: 2 bar

HS CODE [70109045]

505932

• 100 mL Borosilicate Glass Bottle with DIN Thread GL45 (x1)
• Delrin Plug 1/4-28 flat bottom (x2)
• PE protective net

NOTES:

• 1/4-28 Fittings not included
• Max. recommended pressure: 2 bar

HS CODE [70109045]

505933

Kit Reservoir: Tank, Large High Pressure - 2 ports, 150 mL

150 mL glass bottle with thick wall

• PTFE plug with 2 flat bottom 1/4-28 ports (x1) and one Viton o-ring seal
• PTFE Tape for Sealing (1 max per parcel)
• PE protective net
• Bottle holder

NOTES:

• 1/4-28 Fittings not included
• Max. recommended pressure: 8 bar

HS CODE [70109045]

505934

Kit Reservoir: Tank, Large High Pressure - 2 ports, 350 mL

350 mL glass bottle with thick wall

• PTFE plug with 2 flat bottom 1/4-28 ports (x1) and one Viton o-ring seal
• PTFE Tape for Sealing (1 max per parcel)
• PE protective net
• Bottle holder

NOTES:

• 1/4-28 Fittings not included
• Max. recommended pressure: 8 bar

HS CODE [70109045]

505936

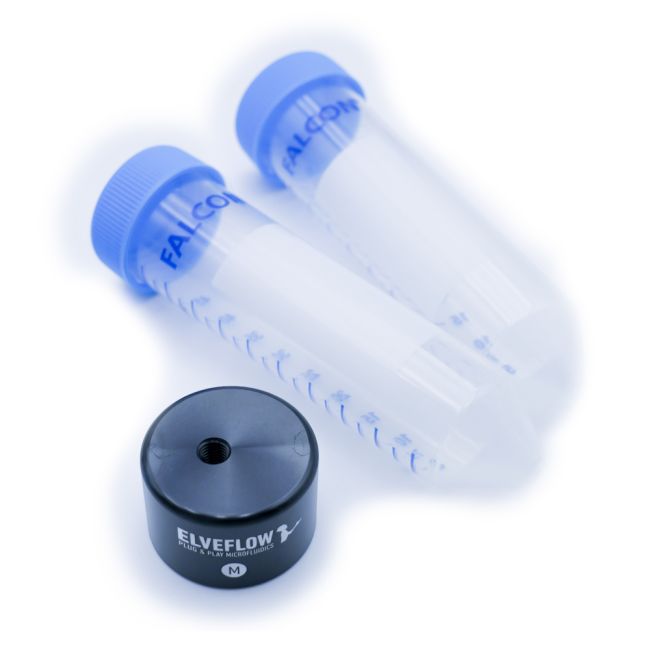

Kit Reservoir: Tank, Medium - 2 ports 50mL

Elveflow Hard Anodized Aluminum Falcon adapter Cap with 2 flat bottom 1/4-28 ports (x1)

• 50 mL Falcon Tube (x2)

NOTES:

• 1/4-28 Fittings not included
• Max. recommended pressure: 8 bar
• Rubber seal gasket (Viton®)

HS CODE [39233010]

505937

Kit Reservoir: Tank, Medium - 4 ports 50mL

Elveflow Hard Anodized Aluminum Falcon adapter with 4 flat bottom 1/4-28 ports (x1)

• 50 mL Falcon Tube (x2)
• Delrin Plug 1/4-28 flat bottom (x2)

NOTES:

• 1/4-28 Fittings not included
• Rubber seal gasket (Viton®)

/! Max. recommended pressure: 8 bar /!
HS CODE [39233010]

505939

Kit Reservoir: Tank, Small - 2 ports, 15mL

Elveflow Hard Anodized Aluminum Falcon adapter Cap with 2 flat bottom 1/4-28 ports (x1)

• 15 mL Falcon Tube (x4)

NOTES:

• 1/4-28 Fittings not included
• Rubber seal gasket (Viton®)

/! Max. recommended pressure: 8 bar /!
HS CODE [39233010]

505940

Kit Reservoir: Tank, Small - 4 ports, 15mL

4-port 15 mL Falcon Tube Microfluidic Reservoir Kit– S

• Elveflow Hard Anodized Aluminum Falcon adapter with 4 flat bottom 1/4-28 ports (x1)
• Delrin Plug 1/4-28 flat bottom (x2)

/! 1/4-28 Fittings not included /!
/! Max. recommended pressure: 8 bar /!
HS CODE [39233010]

505942

Kit Reservoir: Tank, X-Small - 1.5mL

Elveflow Hard Anodized Aluminum Eppendorf adapter Cap with 2 flat bottom 1/4-28 ports (x1)

• 1,5 mL Eppendorf Tube (x4)

NOTES:

• Rubber seal gasket (Viton®)
• 1/4-28 Fittings not included
• Max. recommended pressure: 8 bar

HS CODE [39233010]

505943

Kit Reservoir: Tank, XXS, on Chip

800 uL tube with male luer lock cap and female luer slip adapter (x5)

• O-ring seal (x5)
• Needle Tip 23G 1/2“ blunt end (x5)
• Luer lock barb 3/32” connector (x5)

NOTES: Max. recommended pressure: 200 mbar
HS CODE [39233010]
