SPLG Syringe Pump with Touchscreen
The large touch screen color display lets you see all of the pump’s operating parameters to ensure proper operation during the experiments. Syringe size and flow rate are easily displayed, as well as the volume delivered and elapsed time. Set up is easy using the icon-driven software. An LED on the front panel makes it easy to see if the pump is running. Advanced micro stepping techniques are employed to further reduce the step angle to eliminate flow pulsation. Accuracy is ±0.5%. A wide dynamic flow range from picoliters per minute to millimeters per minute can be programmed into the pump. These versatile pumps can be connected through an RS485 interface. Add the new Adagio software to maximize the use of the pump’s functions and features. Adagio allows you to configure the pump through the software, as well as operate one or multiple pumps. LabVIEW drivers are available on the National Instruments website.
Legato syringe pumps for reliable delivery with the ease of a touch screen
Features
- High resolution color touch screen
- Real time clock
- Touch pad “lock” feature
- Full metal chassis
- Built in syringe table with up to 75 lb. linear force
- Built in RS-485 interface to link multiple pumps
- USB port & RS232 Interface
- TTL interface
- Continuous mode of operation
- Protection with a spill dam
- Analog control option
- CE, UL, CSA, CB Scheme, EU RoHS compliance
- Minimum Flow Rate: 1.26pL/min (0.5 uL syringe)
- 100-240V AC, 50/60Hz
- LabView drivers available from National Instruments
Options
| Order code | Description |
| SPLG101 |
|
| SPLG110 |
|
| SPLG100 |
|
Benefits
- Automatic dispensing of small volumes
- Very precise flow rate control
- Hands free operation with foot pedal
- Better flow performance with accuracy ±0.35%
Applications
- Drug administration
- Chemical applications with slow incorporation of fixed volumes of fluids

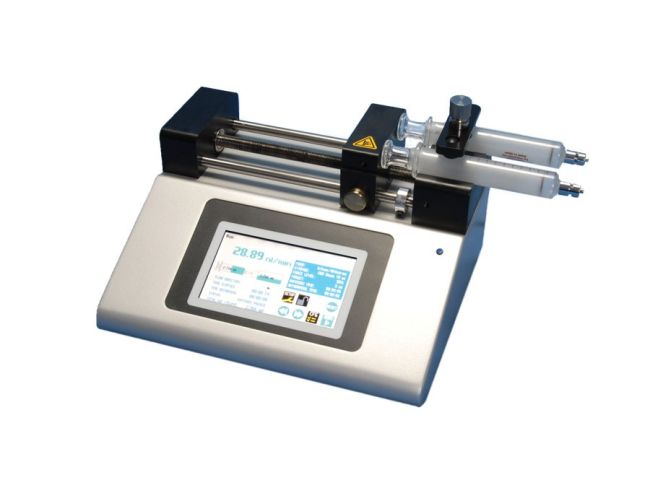

SPLG101
The SPLG101 is ideal for applications where dual syringes are required with small volumes under 10mL. It accommodates two syringes from 0.5 µL to 10 mL. The SPLG101 has a wide flow rate range from 1.26 pL/min to 25.99 mL/min, depending on syringe size.
SPLG110
The SPLG110 offers infuse/withdraw flow control and programmability for up to two multi-step programs of 50 steps each. The SPLG110 has a wide flow rate range from 1.26 pL/min to 88.28 mL/min, depending on syringe size. The SPLG110 accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe can be used in the unit including glass, plastic or stainless steel. The pump is ideal for more complex multi-step dosing and has all multi-mode operation including infusion only, withdrawal only, infusion and withdrawal and withdrawal/infusion modes.
SPLG100
The SPLG100 was the first single-syringe infusion-only pump with a touchscreen interface. The SPLG100 has a wide flow rate range from 1.26 pL/min to 88.32 mL/min, depending on syringe size. It accommodates a single syringe from 0.5 µL to 60 mL. Any type of syringe, including glass, plastic or stainless steel, are held securely in place.
- Accuracy ±0.35%
- Holds one or two syringes from 0.5 μL to 140 mL
- High resolution color touch screen
- Real time clock
- Unparalleled ease of use
- Touch pad "lock" feature
- LED light on front panel
- Full metal chassis
- Built in syringe table
- Up to 75 lb linear force
- Advanced microstepping techniques
- Built in RS-485 interface to link multiple pumps
- USB port & RS232 Interface
- I/O & TTL interface
- Continuous mode of operation
- Protection with a spill dam
- Analog control option
- CE, UL, CSA, CB Scheme, EU RoHS
SPLG100 SERIES FLOW RATES
| Syringe | Diameter | Minimum | Maximum |
| 0.5 μL | 0.103 mm | 1.260 pL/min | 1.325 μL/min |
| 1 μL | 0.146 mm | 2.520 pL/min | 2.651 μL/min |
| 2 μL | 0.206 mm | 5.100 pL/min | 5.299 μL/min |
| 5 μL | 0.343 mm | 14.100 pL/min | 14.690 μL/min |
| 10 μL | 0.485 mm | 28.260 pL/min | 29.380 μL/min |
| 25 μL | 0.729 mm | 63.900 pL/min | 66.370 μL/min |
| 50 μL | 1.03 mm | 127.600 pL/min | 132.500 μL/min |
| 100 μL | 1.457 mm | 255.20 pL/min | 265.100 μL/min |
| 250 μL | 2.304 mm | 638.300 nL/ min | 662.900 μL/min |
| 500 μL | 3.256 mm | 1.275 nL/min | 1.324 mL/min |
| 1000 μL | 4.608 mm | 2.553 nL/min | 2.652 mL/min |
| 1 mL | 4.699 mm | 2.655 nL/min | 2.757 mL/min |
| 3 mL | 8.585 mm | 8.863 nL/min | 9.204 mL/min |
| 5 mL | 11.989 mm | 17.290 nL/min | 17.950 mL/min |
| 10 mL | 14.427 mm | 25.030 nL/min | 25.990 mL/min |
| 20 mL | 19.05 mm | 43.640 nL/min | 45.320 mL/min |
| 30 mL | 21.59 mm | 56.050 nL/min | 58.210 mL/min |
| 60 mL | 26.594 mm | 85.050 nL/ min | 88.320 mL/min |
| SKU | VAR-SPLG101 |
|---|
| Mode | Infusion |
| Syringes (min./max.) | 0.5 μL to 60 mL |
| Power | 100-240 VAC: 50/60 Hz, 50W. 0.5 A fuse |
| Motor Drive Control | Microprocessor with 1/16 microstepping |
| Linear Force (Maximum) | 13.6 kg (30 lb.) @ 100% Force Selection |
| Number of Microsteps per One Revolution of Lead Screw | 15,360 |
| Advance per microstep | 0.069μm/μstep |
| Step rate (Minimum) | 27.5 sec/μstep |
| Step rate (Maximum) | 26 μsec/μstep |
| Drive Motor | 0.9 degree Stepper Motor |
| Pusher Travel Rate (Minimum) | 0.15 μm/min |
| Pusher Travel Rate (Maximum) | 159 mm/min |
| Flow Rate (Minimum) | 1.26 pL/min (0.5 μL syringe) |
| Flow Rate (Maximum) | 88.32 mL/min (60 mL syringe) |
| Dimensions | 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in) |
| Weight | 2.66 kg (5.9 lb.) |
| Connectors | RS485 - IEEE-1394 6 pos, USB Type B |
- As low as $3,605.00
