Thin Wall Glass Capillaries, No filament
Quality glass capillaries at superior prices for microinjection and microelelctrodes.
Looking for something specific? Compare the variety of capillary glass options.
Quality glass capillaries at superior prices for microinjection and microelelctrodes
Features
- Quality borosilicate glass capillaries
- Large variety available
- Some varieties of fire polished capillary glass(See description)
- OD/ID Tolerance: ±0.1 mm
- Length Tolerance: ±1 mm
- Recommended to use with Glass Handling Forceps (77020)
- Products supplied non-sterile
Thin-Wall Single-Barrel Standard Borosilicate (Schott Duran) Glass Tubing Options
| Order code | OD (mm) | ID (mm) | Length | Filament | Fire Polish | Qty |

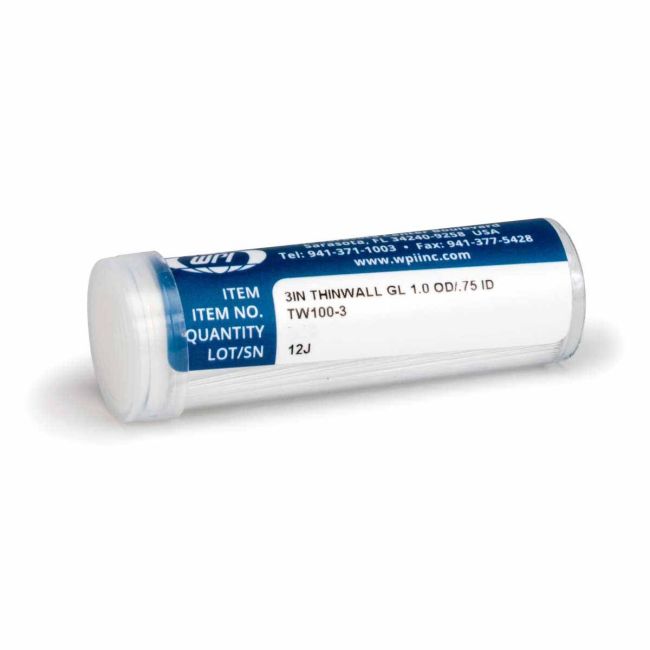

| TW100-3 | 1.0 | 0.75 | 3 in. (76mm) | No | 500 | |
| TW120-3 | 1.2 | 0.90 | 3 in. (76mm) | No | 350 | |
| TW150-3 | 1.5 | 1.12 | 3 in. (76mm) | No | • | 300 |
| TW100-4 | 1.0 | 0.75 | 4 in. (100mm) | No | • | 500 |
| TW120-4 | 1.2 | 0.90 | 4 in. (100mm) | No | 350 | |
| TW150-4 | 1.5 | 1.12 | 4 in. (100mm) | No | • | 300 |
| TW100-6 | 1.0 | 0.75 | 6 in. (152mm) | No | • | 500 |
| TW120-6 | 1.2 | 0.90 | 6 in. (152mm) | No | 350 | |
| TW150-6 | 1.5 | 1.12 | 6 in. (152mm) | No | • | 300 |
Benefits
- Superior pricing
- Most glass capillary orders ship within 48 hours
Applications
- Microinjection
- Electrophysiology
- Patch clamp
- Fluid Handling
Fire Polishing
Fire-Polished glass capillaries are easier to insert into microelectrode holders without damaging the gasket. More importantly, fire-polished glass capillaries won’t scratch the chloridized wire used in a recording electrode. Fire-polishing does not affect the glass’s mechanical or electrical properties.
Making Uniform, Reproducible Microelectrodes
Borosilicate glass capillaries: Close dimensional tolerances assure microelectrode uniformity and reproducibility. Glass capillaries are available in 1, 2, 3, 5 and 7-barrel configurations, complete range of single barrel thin-wall sizes and a variety of special configurations. Glass capillaries with filaments contain a solid filament fused to the inner wall, which speeds filling of electrodes. Glass capillaries with or without inner filaments are available for making microelectrodes in a wide range of diameters.
Capillary Glass with Filament
Single Barrel standard wall thickness glass capillaries are offered either with or without inner filaments for quick filling in a variety of lengths and diameters.
Thin Wall Glass Capillaries
Thin Wall single barrel glass capillaries are offered both with or without inner filaments.
NOTE: Because electrode tips erode when left filled with saline solutions for long periods, electrodes should be made and filled immediately prior to use.
