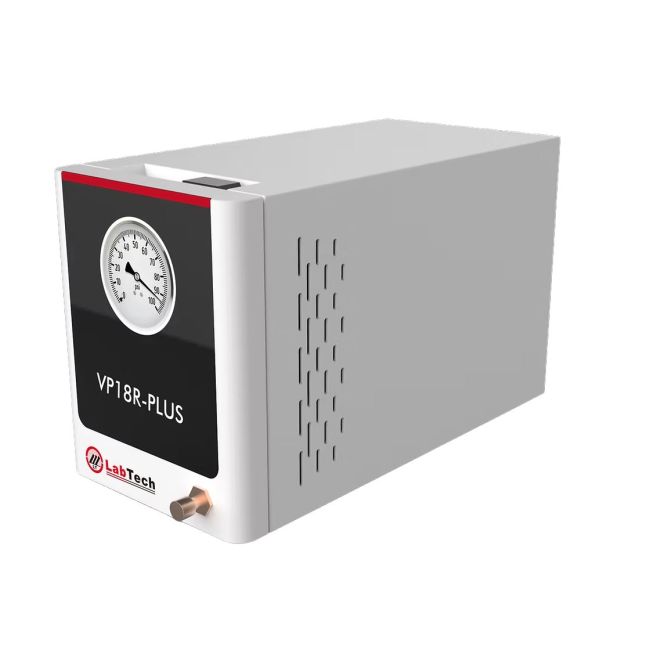

115V Microfluidic Vacuum Pump, 20mbar
$1,691.00
Prices valid in USA, Canada, and PR only.
Order code
505863
Prices valid in USA, Canada, and PR only.
WPI now introduces an external vacuum source alternative to in-line lab vacuum supply. A robust and powerful system offering high performance: -980mbar (-15psi), and anti-corrosive coating & oil-free for a long lasting product. Featuring low noise and vibration at 42dB.
Prices valid in USA, Canada, and PR only.
High efficiency and long lifespan vacuum pump
This high accuracy microfluidic vacuum source generates negative pressure for microfluidic flow control without installation/connection of any instrument.
The anticorrosive coating of the receiver ensures a long lifespan of the instruments.
Elveflow has selected a totally oil free, low noise, high efficiency and long lifespan vacuum pump to be used as vacuum source for the OB1 pressure controller.
| SKU | 505863 |
|---|---|
| Options | Microfluidic Vacuum Pump, 110V |
| Power | 110 V |
Specifications are compared to the compact Elveflow Vacuum Source.
505863 (115V) | 505866 | |
Performances | ||
| Vacuum pressure (relative) | -980 mbar (-15 psi) | -850 mbar(-13 psi) |
| Vacuum pressure (absolute) | 20 mbar (0.3 psi) | 150 mbar (2.2 psi) |
| Pumping speed | 18 L/min | 8 L/min at 0 bar |
| Noise level | <42 dB | <53 dB |
Mechanical specifications | ||
| Dimensions (l x w x h) | 30 x 17 x 24 cm | 16.1 x 19.4 x 19.5 cm |
| Weight | 3 kg | 1.4 kg |
| Pneumatic connection | 6 mm push-in | |
| Internal receiver volume | ||
| Operating temperature | - | 5-40°C |
| Operating humidity | - | up to 80% |
Electrical specifications | ||
| Input voltage range | - | 24 V |
| AC supply frequency | - | 50-60 Hz |
| Power supply voltage | 100 – 240 vac | |
| Max current consumption | ||
| Max power consumption | 140 W | 36W |
