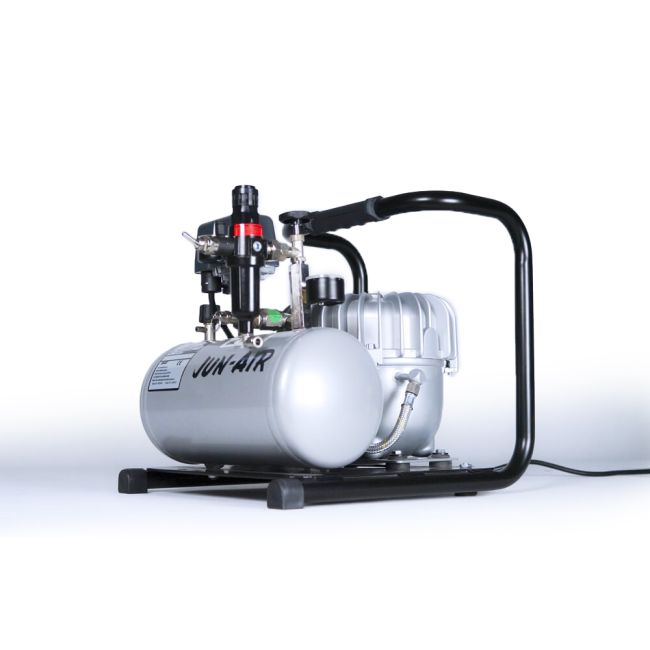

Microfluidic Pressure Source
WPI now introduces an external pressure source alternative to in-line lab air supply. A robust and powerful alternative offering high performance: 11L/min at 8 bar, with a low noise level (<35 dB), and clean air using a 5 µm oil filter.
Options
| Order code | Description |
| 505972 | Kit Compressor Pressure 8 bar 120V/60HZ |
| 505973 | Kit Compressor Pressure 8 bar 230V/50Hz |
Pressure Source Featuring Clean Pressurized Air and Long Life-Span
This lubricated air compressor is a powerful alternative to laboratory gas line supplies. The in-built 5 µm oil filter prevents microdroplets from entering into the instruments. In addition, anti-corrosion treatments of the receiver and long-life synthetic oil utilization makes this pressurized air source the most robust companion for pressure-driven control in laboratories. WPI's microfluidics expert partner ElveFlow specially selected this compressor as the choice for pressure stability and quality output when paired with a microfluidic pump requiring an external pressure source.
| SKU | VAR-505972 |
|---|
Compressor User Manual
The Air compressor is available in two versions: 230V/50Hz or 120V/60Hz
Specifications are compared to the compact Elveflow Pressure Source.
Air compressor (KCP-230 / KCP-120) | Elveflow Pressure Source (EPS) | |
Performances | ||
| Max pressure | 8 bar (120 psi) | 3 bar (44 psi) |
| Air flow rate (at operating pressure) | 11 L/min (at 8 bar) | 1.5 L/min (at 2 bar) |
| Noise level | <35 dB | <53 dB |
Mechanical specifications | ||
| Dimensions (l x w x h) without connectors | 38.4 x 33.3 x 34.2 cm | 16.1 x 19.4 x 19.5 cm |
| Weight | 18 kg | 2 kg |
| Pneumatic connection | 6 mm push-in | |
| Internal receiver volume | 4 L | 350 ml |
| Operating temperature | - | 5-40°C |
| Operating humidity | - | up to 80% |
Electrical specifications | ||
| Input voltage range | - | 24 V |
| AC supply frequency | 50 – 60 Hz | |
| Power supply voltage | 100 – 240 VAC | |
| Max current consumption | 0.9 A | 1.5 A (typical: 0.8 A) |
| Max power consumption | - | 36 W |
