Microfluidic Vacuum Pump, Portable
$1,562.00
Prices valid in USA, Canada, and PR only.
Order code
505866
Prices valid in USA, Canada, and PR only.

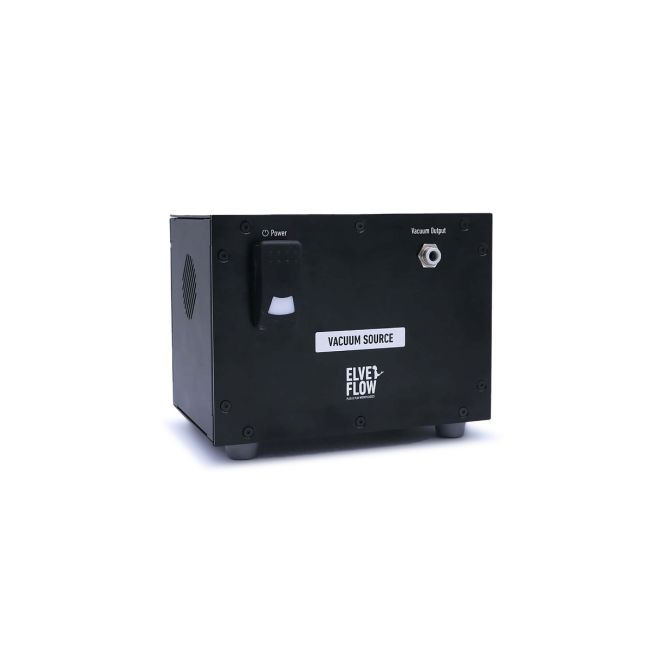

WPI now introduces a portable vacuum source alternative to in-line lab vacuum supply. A robust and powerful alternative offering high performance: a stable and reliable generator (down to 850 mbar), portable with a small footprint (1.4kg), and features low noise levels (<51dB).
Prices valid in USA, Canada, and PR only.
A compact and light vacuum source
We designed an oil-free vacuum source to ease the integration in a laboratory environment thanks to its small footprint and integrated tank.
This vacuum pump is ideal to supply vacuum to a pressure regulator such as the ELVEFLOW OB1.
The steady vacuum generation goes down to -850 mbar which makes it the perfect companion product for -900/1000mbar -900/6000mbar pressure regulators.
Content
- 1* Pressure source instrument
- 1* Power supply unit (24V DC)
- 2m of pneumatic 6mm OD tubing
| SKU | 505866 |
|---|
| Elveflow Vacuum Source (EVS) | |
| Performances | |
| Vacuum pressure (relative) | -850 mbar(13 psi) |
| Vacuum pressure (absolute) | 150 mbar (2.3 psi) |
| Pumping speed | – |
| Noise level | <53 dB |
| Mechanical specifications | |
| Dimensions (l x w x h) | 161 x 194 x 195 mm |
| Weight | 1.4 kg |
| Pneumatic connection | 6 mm push-in |
| Internal receiver volume | 250ml |
| Operating temperature | 5-40°C |
| Operating humidity | up to 80% |
| Electrical specifications | |
| Input voltage range | 24 V |
| AC supply frequency | 50-60 Hz |
| Power supply voltage | 10-240 V |
| Max current consumption | 1.5 A (typical: 0.8 A) |
| Max power consumption | 36 W |
