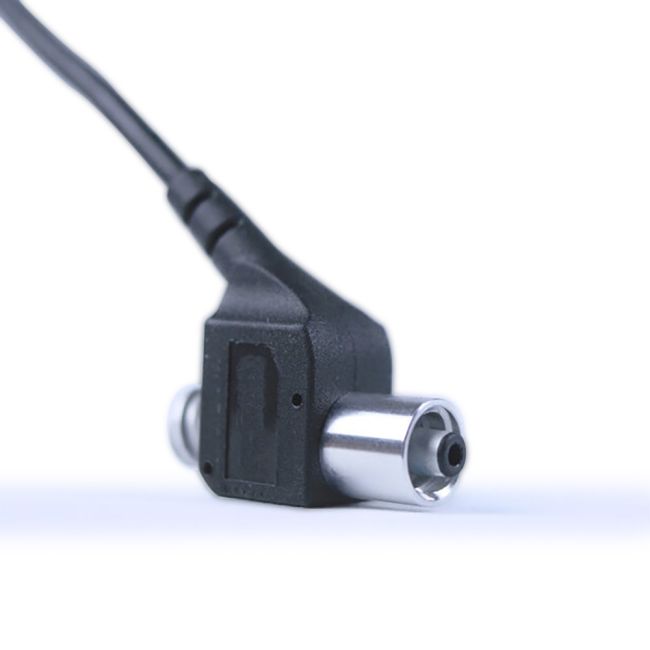

MFP Microfluidic Flow PLUS Sensor

Elveflow’s Flow Plus Sensor works as Gauge sensors, measuring positive relatively to atmospheric pressure. The MFP is compact, easy to clean, don’t require maintenance, easy to install or integrate in existing plants. Its features make it a robust and reliable solution for demanding microfluidic applications

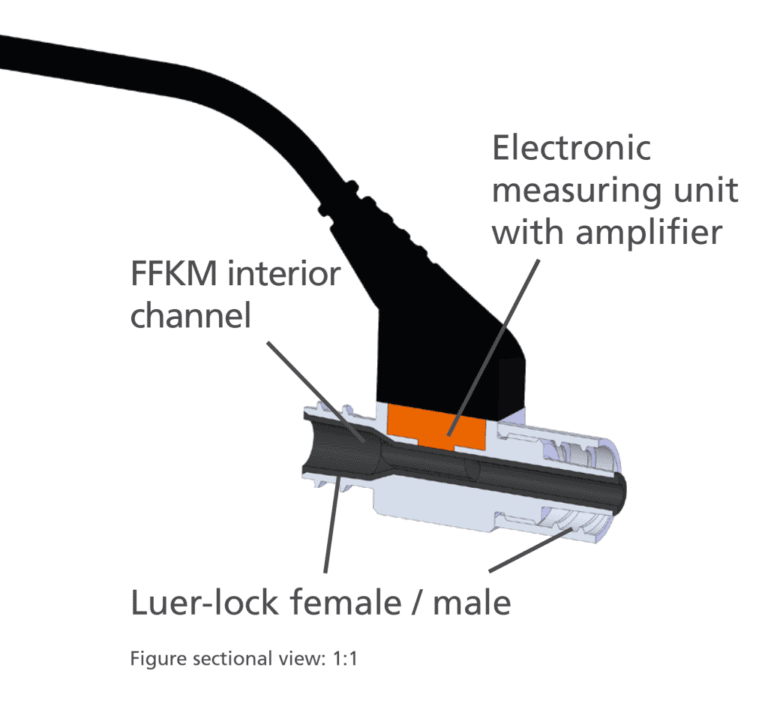

• Wide media compatibility (FFKM)
• Inline Sensor
• No-maintenance and easy to clean
• Temperature compensated
• Polarization safe
• Luer-Lock adapter
• Integrated measurement amplification

Key performances

• Accuracy up to 2 % Full Scale
• 1 range   0 – 16 bar / overload 25 bar
• No dead volume
• Flow rate up to 100 ml / min *
• Compatible with gases and liquids
• Fully compatible with other instruments from the Elveflow product line(MSR Sensor reader and Flow Controllers (OB1))

Pressure control

You can achieve precise pressure control of your experiment by combining any Pressure Sensor with our pressure controller systems (OB1 MK4). The Elveflow ESI software automatically adjusts the pressure to reach the required flow rate.

Researchers who want to monitor the pressure of a third party instrument like a syringe pump can plug the flow sensor to our Microfluidic Sensor Reader (MSR).

Smooth, pulseless flow

All our flow controller systems (OB1 MK4) can be coupled with the Microfluidic Inline Pressure Sensor. Using the feedback loop control of our ESI software, you can accurately monitor and control pressure anywhere in setup in a stable, pulseless and responsive fashion. Directly input the pressure into the software to reach the requested value.
The microfluidic pressure sensor can be plugged anywhere inline in your microfluidic setup.

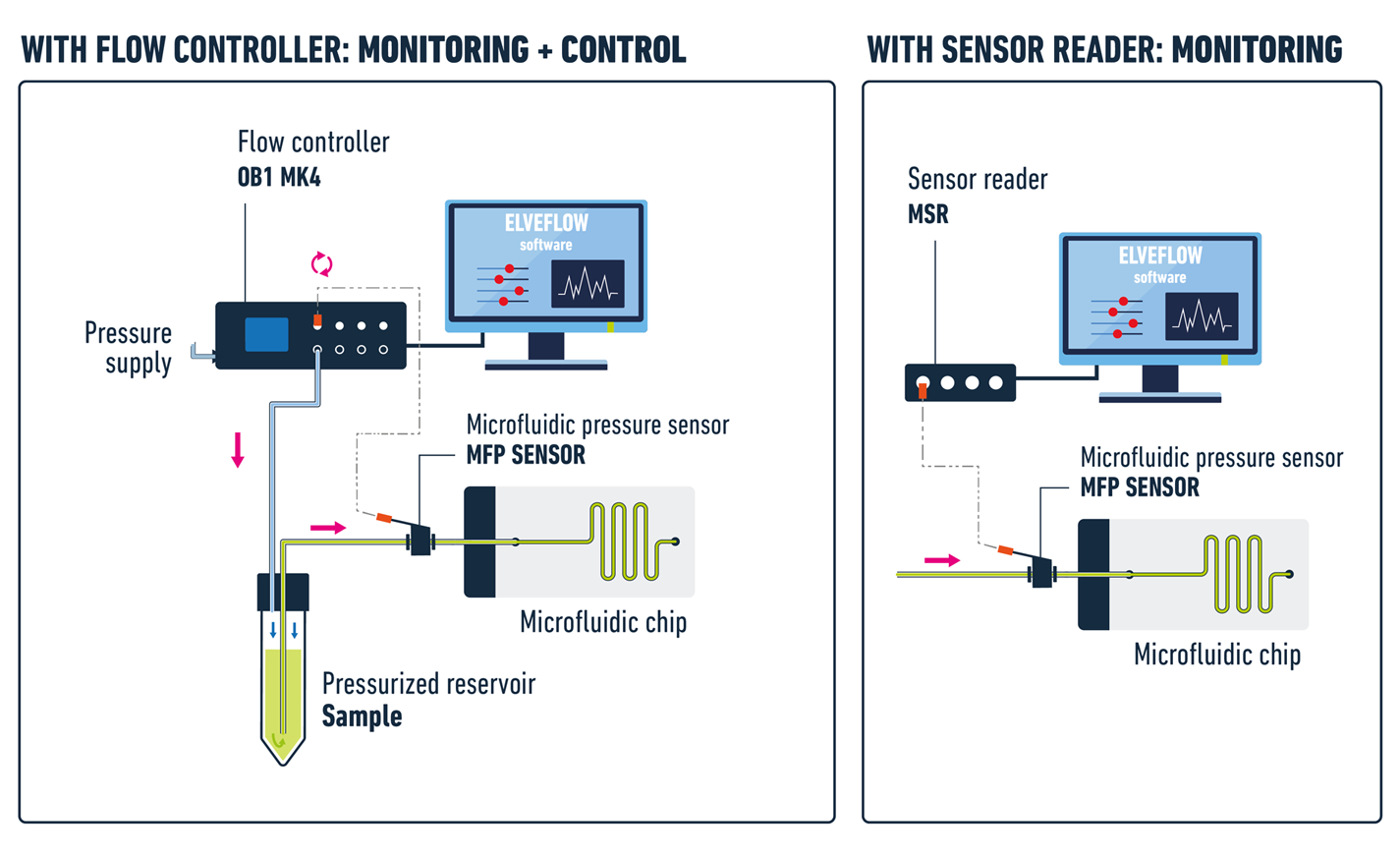

Typical setup
