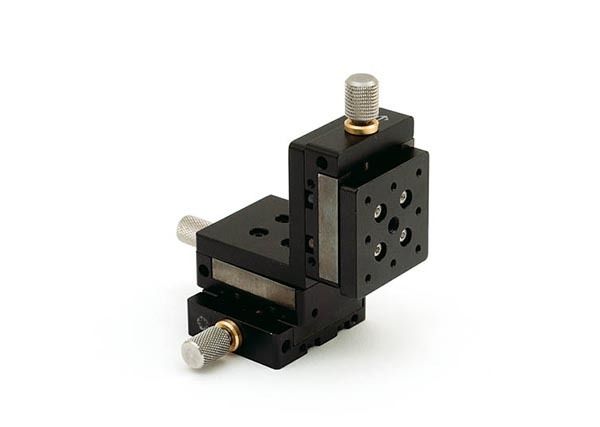

MM-6 Manual Micropositioner
$1,050.00
Prices valid in USA, Canada, and PR only.
Order code
506014
Prices valid in USA, Canada, and PR only.
The MM-6 micropositioner is light weight, accurate, compact device designed to eliminate many research and design problems, especially in the case of space limitations. Hardened steel precision pre-loaded ball bearing slides and high resolution thumbscrew movement assure smooth motion, precision, and excellent load bearing capacity.
The black anodized aluminum body is made with a one-piece base and three piece construction. The top plate is designed around an M2 thread size on a 10 mm square hole pattern. The travel of the stage is 0.26" (6.5 mm) and the base is easily adapted to most surfaces.
Prices valid in USA, Canada, and PR only.
Features
- Lightweight, accurate and compact
- Pre-loaded ball bearing slides
Benefits
- Provides precise and smooth motion with excellent load bearing capacity
Applications
- Small jobs requiring precision in placement of a probe or electrode.
| SKU | 506014 |
|---|---|
| System | Triple Stage |
| Type | Detail |
| Travel | 6.5 mm (0.26") |
| Resolution | 1.0 µm |
| Maximum Load | Horizontal: 3 kg (6.5 lbs.) Vertical: 0.5 kg (1 lb.) |
| Dimensions (Baseplate) | 35 x 30 x 15 mm (1.4 x 1.2 x 0.6") |
