Anti-Solarization Fiber Optic Cables, 600 um Core
Anti-Solarization Fibers stabilize to less than 5% degradation over a period of 20,000 hours after an initial transmission “burn-in” loss of less than 25%.
Features

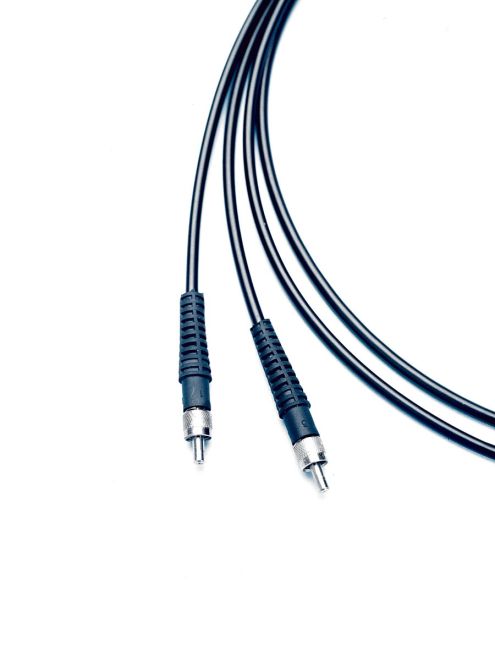

- Fiber Optic Cable, 1 m, SMA, 600 µm Core, Anti-Solarization
- General Purpose UV-VIS fiber
- Solarization resistant fiber
- Silica multimode fiber specifically designed for transmission of UV light
- Transmits light in the visible range (200nm-1200nm)
- Built with SMA connectors
Benefits
- Fibers stabilize to less than 5% degradation over a period of 20,000 hours after an initial transmission “burn-in” loss of less than 25%
Applications
- Deep UV spectroscopy
Anti-Solarization
The transmission of conventional UV-enhanced silica/silica fiber decreases rapidly at wavelengths below 240 nm when exposed to high intensities of a deuterium lamp. This effect is called “UV-solarization” and results from the generation of color centers in the fiber material. The lifetime of such a fiber, defined by the 1/e reduction in transmission at 240 nm, is normally less than 200 minutes. This effect renders them unsuitable for UV spectroscopy below 240 nm.
Anti-solarization fibers suitable for deep UV spectroscopy solve this problem. These fibers stabilize to less than 5% degradation over a period of 20,000 hours after an initial transmission “burn-in” loss of less than 25%. Additionally, this anti-solarization characteristic will not degrade over time.
Properties
| SKU | FO-600AS-SMA |
|---|---|
| Fiber Optics | 600 µm Core |
| Specifications | |
| MODE | Multimode |
| CORE | Pure silica |
| Numerical aperture | 0.22 ± 0.02 (standard) |
| Standard prooftest | 70 kpsi |
| Minimum bend radius | 100x clad radius (momentary) |
| 600x clad radius (long term) | |
-
