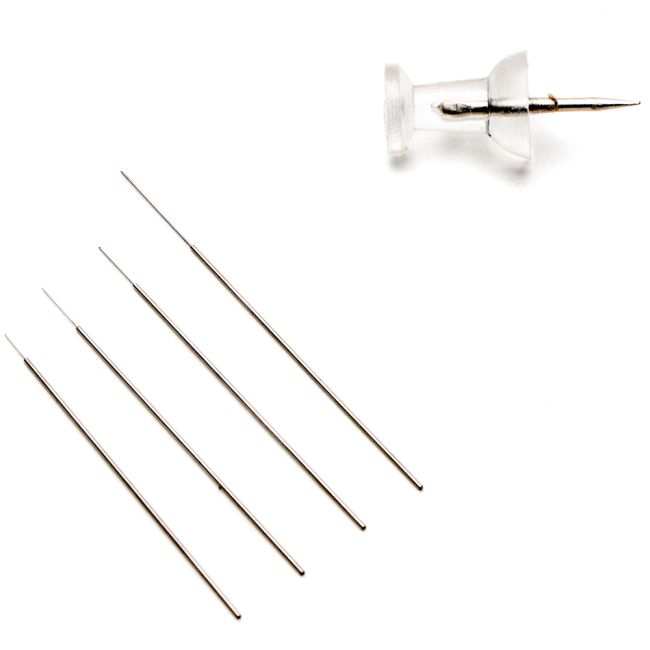

NanoFil Needles
NanoFil™ needles are made for use with WPI's NanoFil™ syringes, are universal to any volume, and are available in both blunt and beveled syles, and each needle is handcrafted in-house and inspected for quality and consistency for your application. Each needle is fixed to a 26G base for enhanced rigidity, and allows for a universal fit across any NanoFil™ syringe. Our unique tri-beveled needle style boasts superior sharpness for insertion avoiding mechanical damage of sensitive tissues.
Paired with WPI's gastight NanoFil™ syringes, you will see a true difference in your application outcomes.
* Returns Policy : Non-returnable/Non-refundable
Curious how NanoFil™ supports precision microinjection?
Visit the Gas-Tight Injection System page to learn about its gas-tight design, needle versatility, etc.
Features
- Tip Material: Stainless Steel
- For use with NanoFil syringes
- Package of 1
- Assortment packages are available
Click here to view the current NanoFilTM Data Sheet.
Selecting the Right Tip for your NanoFilTM Microinjection Application
Options
| Order code | Description | Gauge | Bevel/Blunt | Pkg Size |
| NF33BL | Nanofil 33G Blunt Needle | 33 G | Blunt | 1 |
| NF34BL | Nanofil 34G Blunt Needle | 34 G | Blunt | 1 |
| NF35BL | Nanofil 35G Blunt Needle | 35 G | Blunt | 1 |
| NF36BL | Nanofil 36G Blunt Needle | 36 G | Blunt | 1 |
| NF33BV | Nanofil 33G Beveled Needle | 33 G | Beveled | 1 |
| NF34BV | Nanofil 34G Beveled Needle | 34 G | Beveled | 1 |
| NF35BV | Nanofil 35G Beveled Needle | 35 G | Beveled | 1 |
| NF36BV | Nanofil 36G Beveled Needle | 36 G | Beveled | 1 |
| NF33-36BL | Nanofil Needle Assortment | 33-36 G | Blunt | 4 (1 of each size) |
| NF33-36BV | Nanofil Needle Assortment | 33-36 G | Beveled | 4 (1 of each size) |
NOTE: Due to supply constraint, this product is currently non-returnable/non-refundable. For details, please refer to the WPI Terms & Conditions.
| SKU | VAR-3184 |
|---|
| Tip Order code | Guage | Needle O.D. “A” (µm) | Avg. Neelde I.D. “B” (µm) | Range of ID for B (µm)* | Range of OD for B (µm) | Tip Length “C” (mm) | Total Length “D” (mm) | Shank O.D. “E” (µm) | Bevel Length “F” (µm) | Total Dead Volume (µL) | Dead Vol Range (µL) | Tip Material |
| NF33BV | 33 | 210 | 115 | 89-125 | 200-216 | 10 | 40 | 460 | ≈348 | 0.416 | 0.2488-0.4909 | Stainless Steel |
| NF34BV | 34 | 185 | 85 | 64-100 | 178-190 | 5 | 35 | 460 | ≈290 | 0.199 | 0.1126-0.2749 | Stainless Steel |
| NF35BV | 35 | 135 | 55 | 38-76 | 127-139 | 5 | 35 | 460 | ≈204 | 0.435 | 0.3676-0.4608 | Stainless Steel |
| NF36BV | 36 | 110 | 35 | 25-75 | 102-132 | 3 | 33 | 460 | ≈156 | 0.340 | 0.2635-0.3671 | Stainless Steel |
| NF33BL | 33 | 210 | 115 | 89-125 | 200-216 | 10 | 40 | 460 | ≈0 | 0.416 | 0.2488-0.4909 | Stainless Steel |
| NF34BL | 34 | 185 | 85 | 64-100 | 178-190 | 5 | 35 | 460 | ≈0 | 0.199 | 0.1126-0.2759 | Stainless Steel |
| NF35BL | 35 | 135 | 55 | 38-76 | 127-139 | 5 | 35 | 460 | ≈0 | 0.435 | 0.3676-0.4608 | Stainless Steel |
| NF36BL | 36 | 110 | 35 | 25-75 | 102-132 | 3 | 33 | 460 | ≈0 | 0.340 | 0.2635-0.3671 | Stainless Steel |
-
