EVOM™ AUTO for TEER Measurement In 24/96 HTS Plate
World Precision Instruments (WPI), the global leader in TEER technology, is proud to introduce the EVOM™ Auto, our newest entry into our pioneering EVOM family of products. The EVOM™ Auto automates measurements of TEER in epithelial or endothelial monolayers cultured on high throughput screening (HTS) 24 and 96-well and plates utilizing our innovative EVOM technology, qualitatively measuring cell monolayer health and quantitatively measuring cell confluence by determining an increase or a plateau in tissue resistance.
Automated measurement of tissue resistance of transwell cell cultures provides the advantages of speed and precision, minimizes the chances of contamination, and ensures the rapid availability of measured resistance data. EVOM™ Auto produces a low AC current that omits any adverse physiological effects of the measurement technique on the samples and is specially designed for the non-destructive, high throughput screening of epithelial/ endothelial cellular physiology (e.g., confluence of cellular monolayers, barrier integrity of cell cultures, cytotoxicity). To learn more about our warranty options, click here.
Options
| Order code | Description |
| EVA-MT-03-01 | EVOM™ Auto For TEER Measurement in 96 HTS Plate |
| EVA-MT-03-02 | EVOM™ Auto For TEER Measurement in 24C HTS Plate |
| EVA-MT-03-03 | EVOM™ Auto For TEER Measurement in 24M HTS Plate |
System Includes

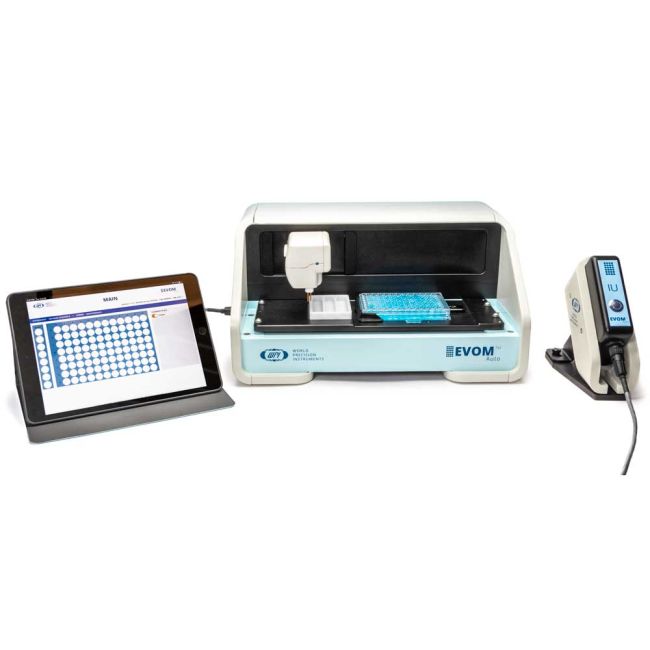

- EVOM™ Auto (TEER Measurement System includes the Autosampler, 96 HTS or 24C (Corning) HTS or 24M (Millipore) HTS Electrode Array
- Interface Unit and Cable
- Control iPad with software
- Power Cord
Applications
- Epithelial and Endothelial Barrier Studies
- Confluence
- Cytotoxicity
- Lung Viral Infection
- Blood Brain Barrier (BBB)
- Lung in vitro Models for COVID Studies
- Intestine, Kidney and Liver Tissues
Our EVOM™ Auto is a Complete System
- Most reliable and convenient method of evaluating and monitoring the structural integrity of epithelial tissue culture in vitro
- High-throughput 24 and 96-well plate system for labs with high volume
- Unparalleled measurement accuracy with continuous data recording capability
- Measure cellular activity label-free and real-time
- 96 well plate electrode array is compatible with a wide variety of 96-well HTS plates: Corning, Millipore, and MatTek
- 24C electrode array for Corning 24 HTS plates and 24M electrode array for 24 well Millipore 24 HTS plate
- Easy switch and measurement in different plate types (24 or 96) by swapping electrode array and plate adapters using the same system
- With web-based software, no operating system or security upgrades are required
Features
| Features | Advantages | Benefits |
| Electrodes available for 24 or 96-well HTS plates | Measure 24 or 96-wells, a column at a time (electrode array measures a column). | Save time by automating your process and move through a plate quickly. |
| Easy switch options for different plate types | By simply plugging in the right electrode array and matching plate adapter key, fast and easy switch between different HTS plate types (e.g., Corning 24, Corning 96) is possible. | The users can perform experiments on different platforms (24 or 96 HTS plates or different 96 HTSs) analyze samples using the same system. |
| Automate your measurements | Streamline your workflow. | Minimize human errors. |
| Three rinse locations | You may rinse your electrodes multiple times during a measuring sequence. | Take control of your protocol and define the sequence you need. |
| Crash protection | System automatically detects a misalignment and pauses measurements to prevent equipment damage. | Minimize probe damage and avoids costly repairs. |
| Auto-detection of electrode head | System automatically detects your electrode and configures its position and software options for your plate. | Hardware setup is easy and requires no configuration. |
| Intuitive touchscreen interface with browser-based software | Programming your sequences is simple with simple selection options. | Easy-to-navigate system saves time when configuring sequences. |
| Confirm or create a custom plate profile | Can adjust the programmed coordinates. | With complete control of the system, you can fine tune the programming as desired (e.g., plate type, sample depth). |
| Ability to save three plate coordinates per plate type (. e.g., Corning 96) | Multiple (three) users can operate the instrument using their individual saved settings. | Date and time stamps of the user plate profile changes help to keep track if the plate profiles were changed. Ensure consistent and error free measurements. |
| Store all your data or export to Excel | You can analyze your data in a manner suitable to your workflow. | Flexibility to access and manage your data. |
EVOM Auto Compatible High Throughput Transwell Plates
| 24C Electrode Array | 24 M Electrode Array | 96 Electrode Array | ||||
| Corning HTS Transwell | Corning Falcon HTS Multiwell | Millicell-24 | Millipore HTS96 Multiwell | Corning Falcon | Corning HTS Transwell | MatTek 96 HTS Plates |
| 3378 | 351181 | PSHT010R1 | PSHT004R1 | 351131 | 3380 | CCI96-PET-0.4 |
| 3379 | 351183 | PSST010R1 | PSRP004R1 | 351161 | 3392 | |
| 3396 | 351185 | PSMT010R1 | PSRP004R5 | 351162 | 3381 | CCI96-PET-0.4-5 |
| 3397 | 354803 | PSET010R1 | PSHT004S5 | 351163 | 3391 | |
| 3398 | 354804 | PSRP010R1 | PSHT004R5 | 351164 | 3385 | CCI96-PET-CL-0.4 |
| 3399 | PSRP010R5 | 353938 | 3386 | |||
| PSHT010R5 | 3387 | CCI96-PET-CL-0.4-5 | ||||
| 3388 | ||||||
| 3374 | ||||||
| 3384 | ||||||
With additional electrode arrays, the same system can be used for other plate types
| Electrode Array Part Numbers | Product Description |
| EVA-EL-03-01 | EVOM™ Auto 96 HTS Electrode Array For TEER |
| EVA-EL-03-02 | EVOM™ Auto 24C HTS Electrode Array For TEER |
| EVA-EL-03-03 | EVOM™ Auto 24M HTS Electrode Array For TEER |
*24C = Corning 24
*24M = Millipore 24
Add-ons
| Order code | Description |
| EVA-MT-03-Upgr | EVOM™ Auto EVA-MT-02-01 Upgrade to EVA-MT-03-01 |
| EVA-MT-03-EX1 | EVOM™ Auto 1 Year Premium Warranty |
| EVA-MT-03-EX2 | EVOM™ Auto 2 Year Premium Warranty |
| EVA-MT-03-INS | EVOM™ Auto On-Site Installation & Training |
| EVA-MT-03-IOQ | EVOM™ Auto Instrument IQ/OQ |
| EVA-MT-03-CAL | EVOM™ Auto Annual Inspection and Calibration |
Note
- Premium warranties cover any accidental damages.
- Premium warranties exclude cosmetic damages that do not impact performance of the instrument.
- If premium warranties are not purchased with a new instrument, the premium warranties can be added afterwards with the purchase of EVA-MT-03-CAL.
| SKU | VAR-EVA-MT-03-01 |
|---|
-
EVOM™ Auto Electrode Array For TEER
Request Quote -
Sterile Disposable Rinse Station Inserts of EVOM™ Auto
As low as $35.00 Regular Price $35.00 -
EVOM™ GxP Compliance Module Powered by TotalLab
Request Quote
- Introducing EVOM™ Auto, Ideal for Drug Discovery
Sep 05 - Understanding TEER: A Key Tool for Studying Barrier Integrity Aug 21
- What TEER Can Tell You About Cell Culture Health May 16
- Factors Affecting TEER Measurement in Cell Culture Studies May 08
- Streamlining Barrier-Integrity Assays: Introducing the 24-Well SUMILON Companion Plate Apr 29
Documents
- EVOM™ Auto Brochure
- EVOM™ Auto Sell Sheet
- EVOM™ Auto Instruction Manual
- EVOM™ Auto Installation Guide
- EVOM™ Auto Tech Bulletin - Networking Guide
- EVOM™ Auto Tech Bulletin - Configuring Ethernet Access
- EVOM™ Auto Tech Bulletin - Updating the Software
- EVOM™ Auto Tech Bulletin - Release Notes
- Comprehensive Solutions Workflow
Video
EVOM™ Auto: Benefits for Drug Discovery
EVOM™ Auto: How to add a Corning 24 Adapter and Electrode Array
EVOM™ Auto: How to Remove the Electrode Array
EVOM™ Auto: How to Set up the Interface Unit and Autosampler
What is TEER
| Type | Description |
| Autosampler Dimensions (W×D×H) | 16×10×8.4” |
| Autosampler Weight | 15 lbs. |
| CE Certified | Yes |
| CSA Certified | Yes |
| UL Certified | Yes |
| Compatibility |
|
| Resistance Range | 10KΩ, 50KΩ, 100KΩ |
| Number of Rinse Stations | 3 |
| Electrode Array |
|
| Minimum Sample Reading Time | 1 Second |
| Control Device for Running Software | Tablet, Laptop, Desktop with Wi-Fi adapter |
| Output Data | CSV/Microsoft® Excel |
