504955 Luer to Tubing Coupler Kit Pictures

The barbed tubing assortment kit contains over 250 items. All the items are pictured on a grid below. The darker lines in the image grid represent centimeters, and the smaller ones are 2.5 mm apart.

Luer to Tubing Coupler Assortment Kit P/N 504955 (Nylon)

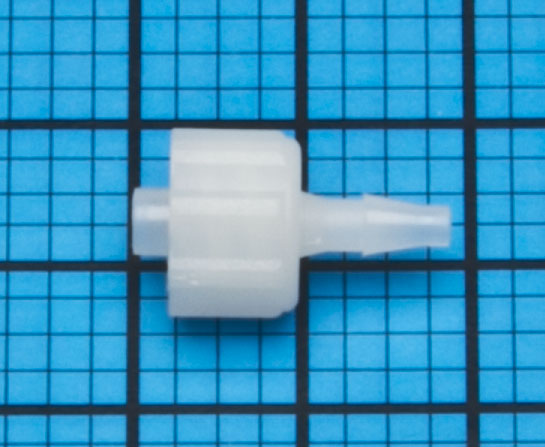

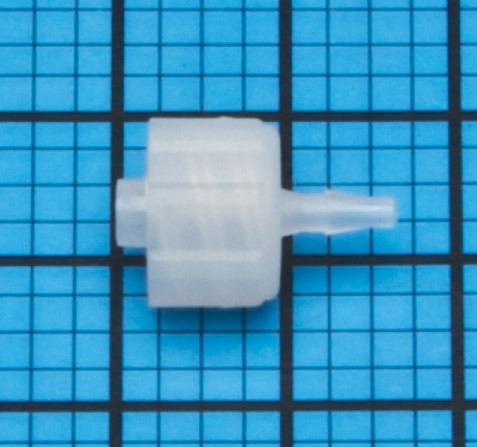

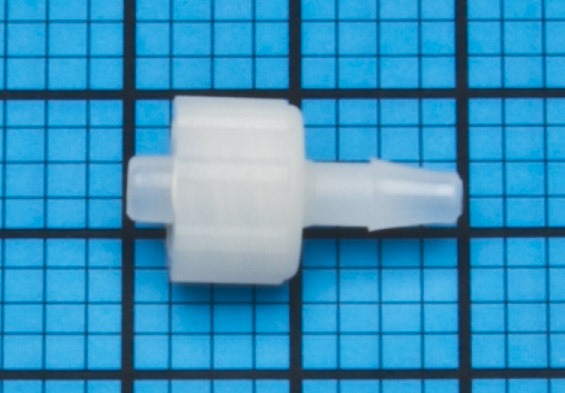

1/16" Barbed Male Luer w/ Locking Nut, Qty: 10	3/32" Barbed Male Luer w/ Locking Nut, Qty: 10	1/8" Barbed Male Luer w/ Locking Nut, Qty: 10

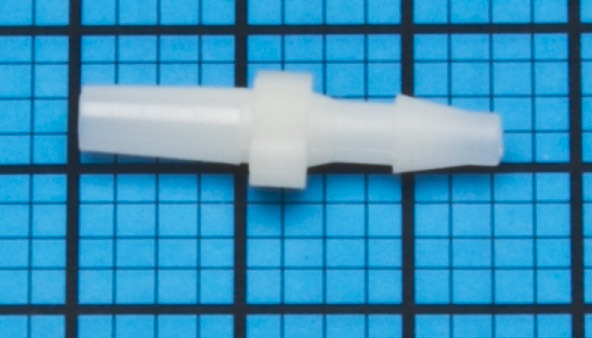

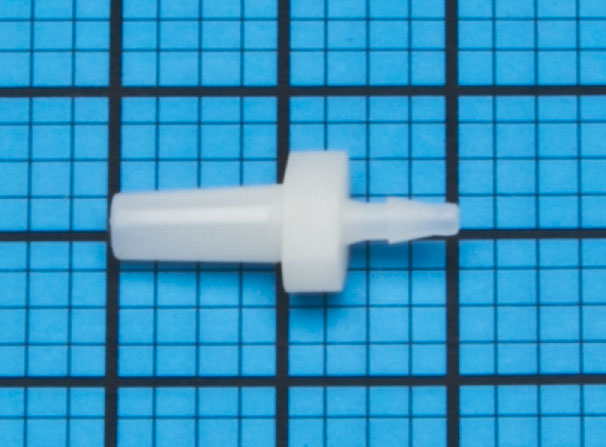

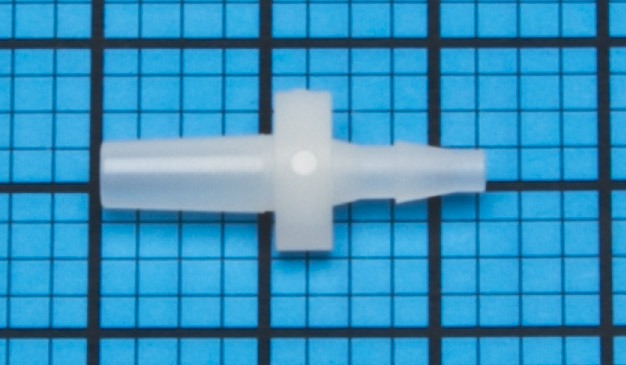

1/16" Barbed Male Slip Luer, Qty: 10	3/32" Barbed Male Slip Luer, Qty: 10	1/8" Barbed Male Slip Luer, Qty: 10

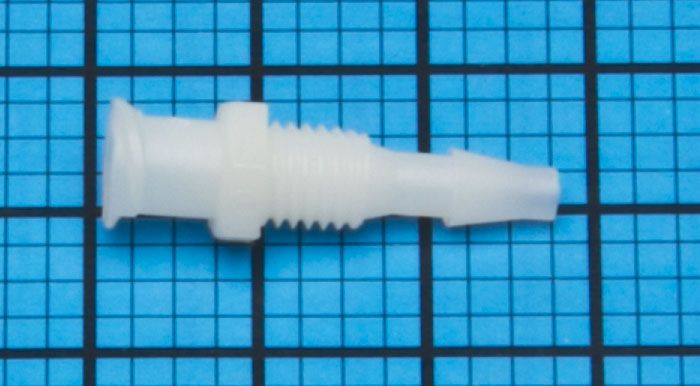

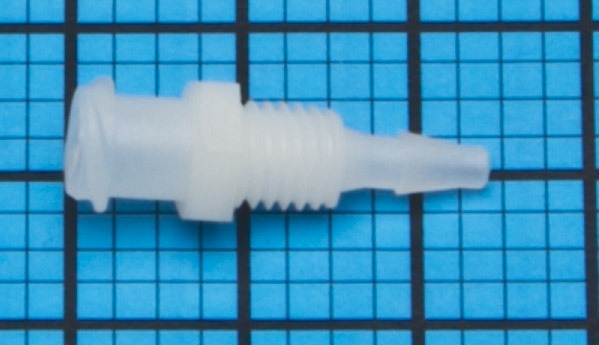

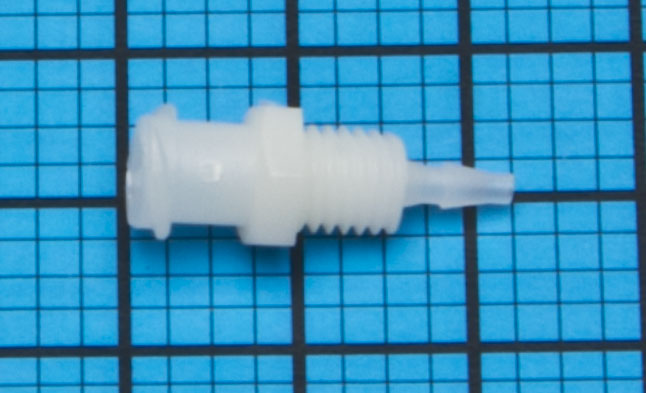

1/16" Female Luer for Bulkhead Mounting 1/4" - 28, Qty: 10	3/32" Female Luer for Bulkhead Mounting 1/4" - 28, Qty: 10	1/8" Female Luer for Bulkhead Mounting 1/4" - 28, Qty: 10

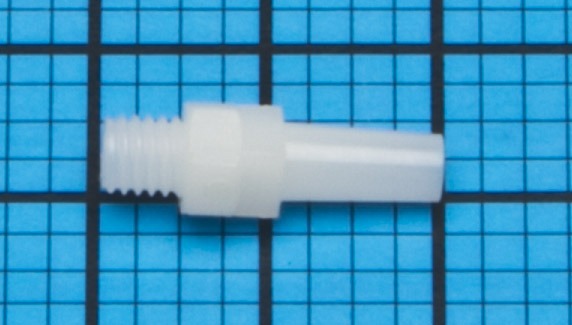

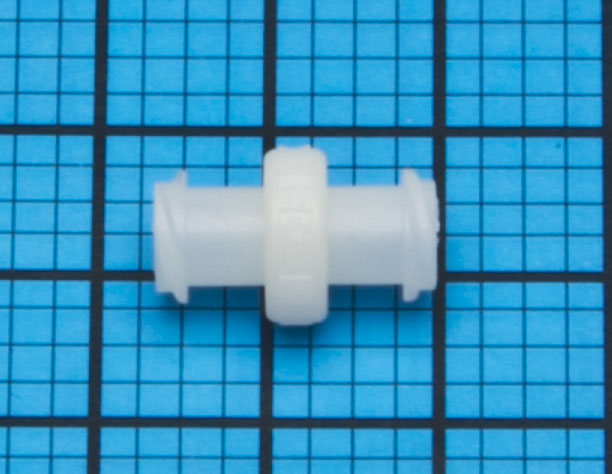

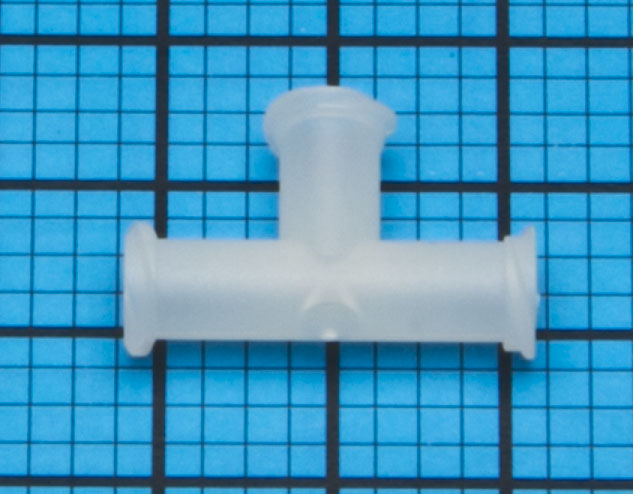

Female Luer Connector w/ Full Luer Threads, Qty: 10	Female Luer Tee w/ Full Luer Threads, Qty: 10	10-32 UNF Threaded Port Male Slip Luer, Qty: 10

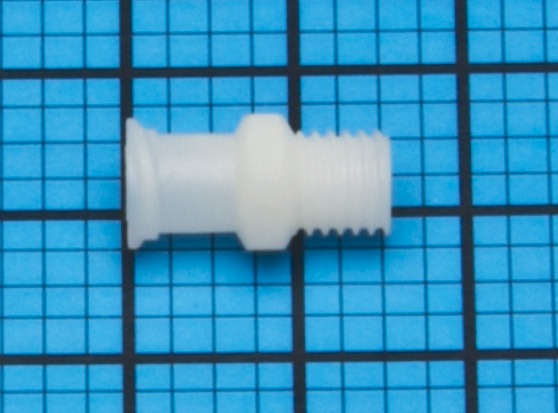

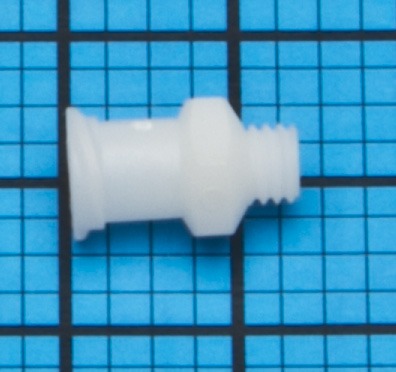

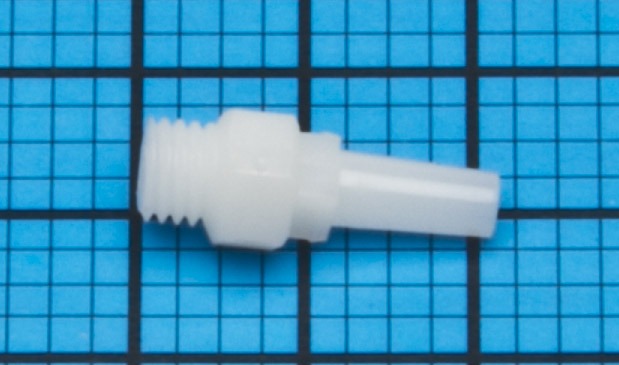

1/4-28 UNF Threaded Port Male Slip Luer, Qty: 10	10-32 UNF Threaded Port Female Luer, Qty: 10	1/4-28 UNF Threaded Port Female Luer, Qty: 10

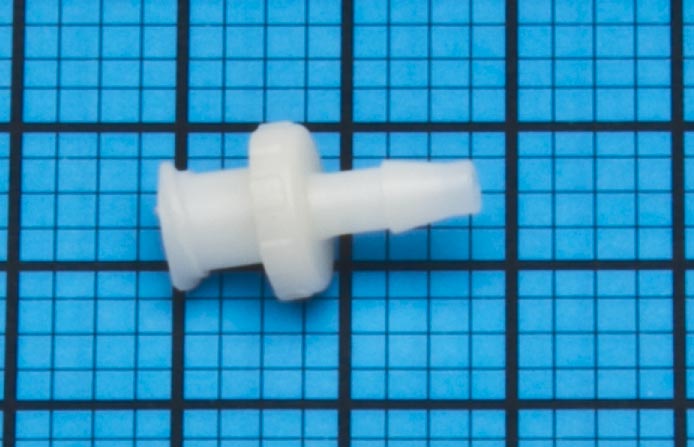

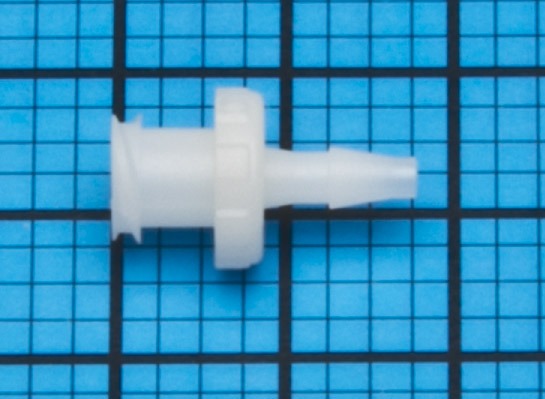

1/16" Barbed Female Luer w/ Full Thread, Qty: 10	3/32" Barbed Female Luer w/ Full Luer Thread, Qty: 10	1/8" Barbed Female Luer w/ Full Luer Thread, Qty: 10

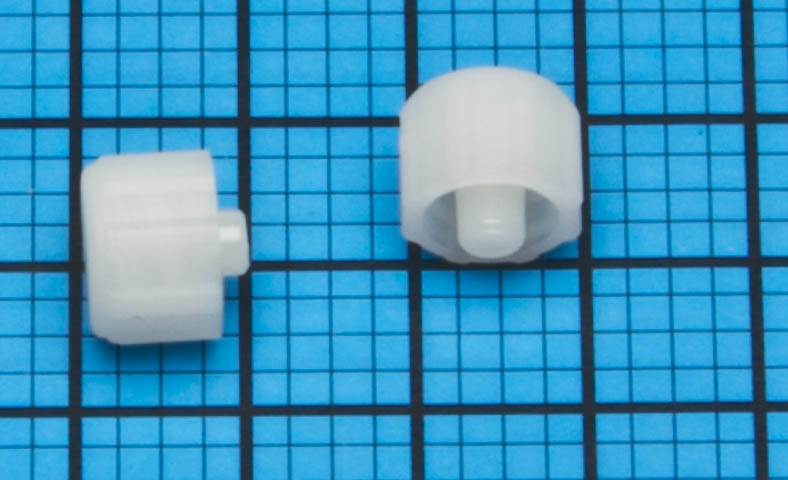

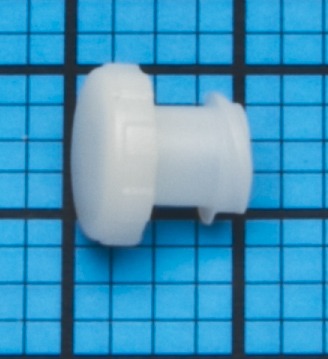

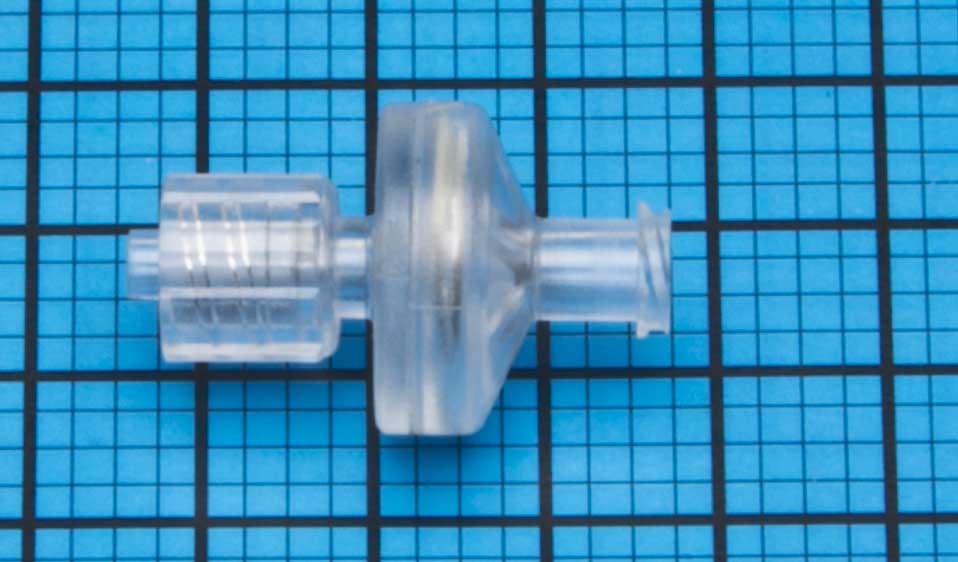

Male Luer Plug w/ Locking Nut, Qty: 10	Female Luer Plug w/ Full Thread, Qty: 10	Locking Male to Female Luer Check Valve, Qty: 1

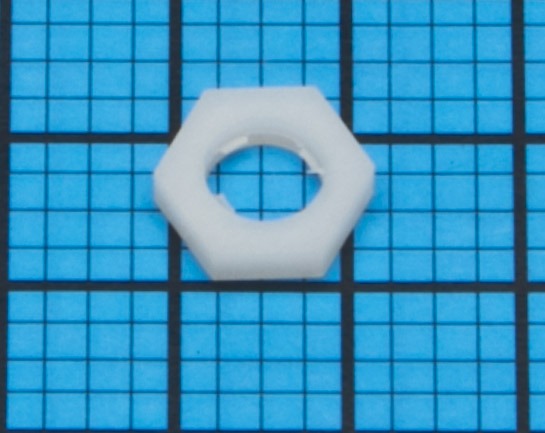

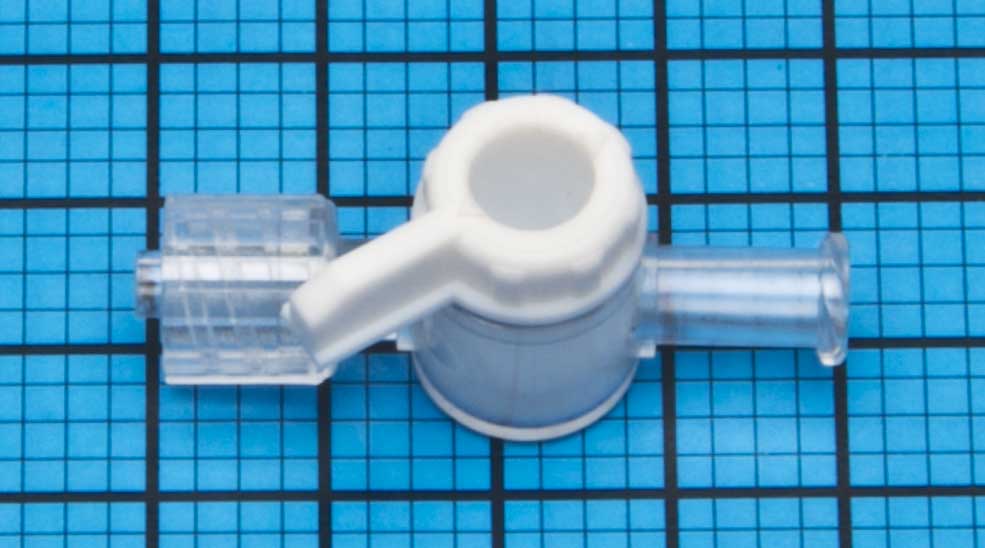

Locking Male x Female Luer 1-Way Stopcock, Qty: 1	Locking Male x Locking Male x Female Luer 4-Way Stopcock, Qty: 1	Stamped Hex Nut for Bulkhead Luers 1/4" - 28, Qty: 30

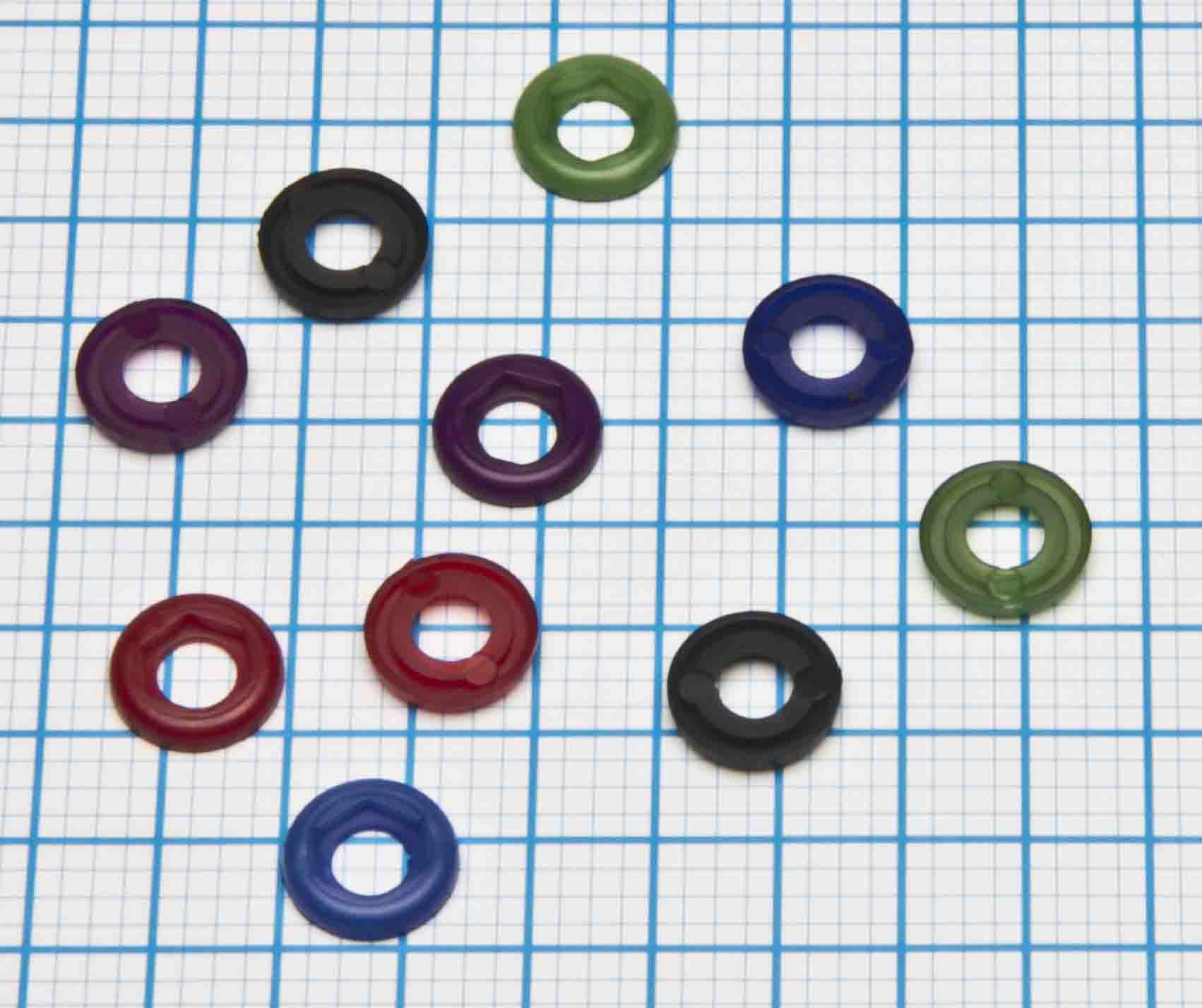

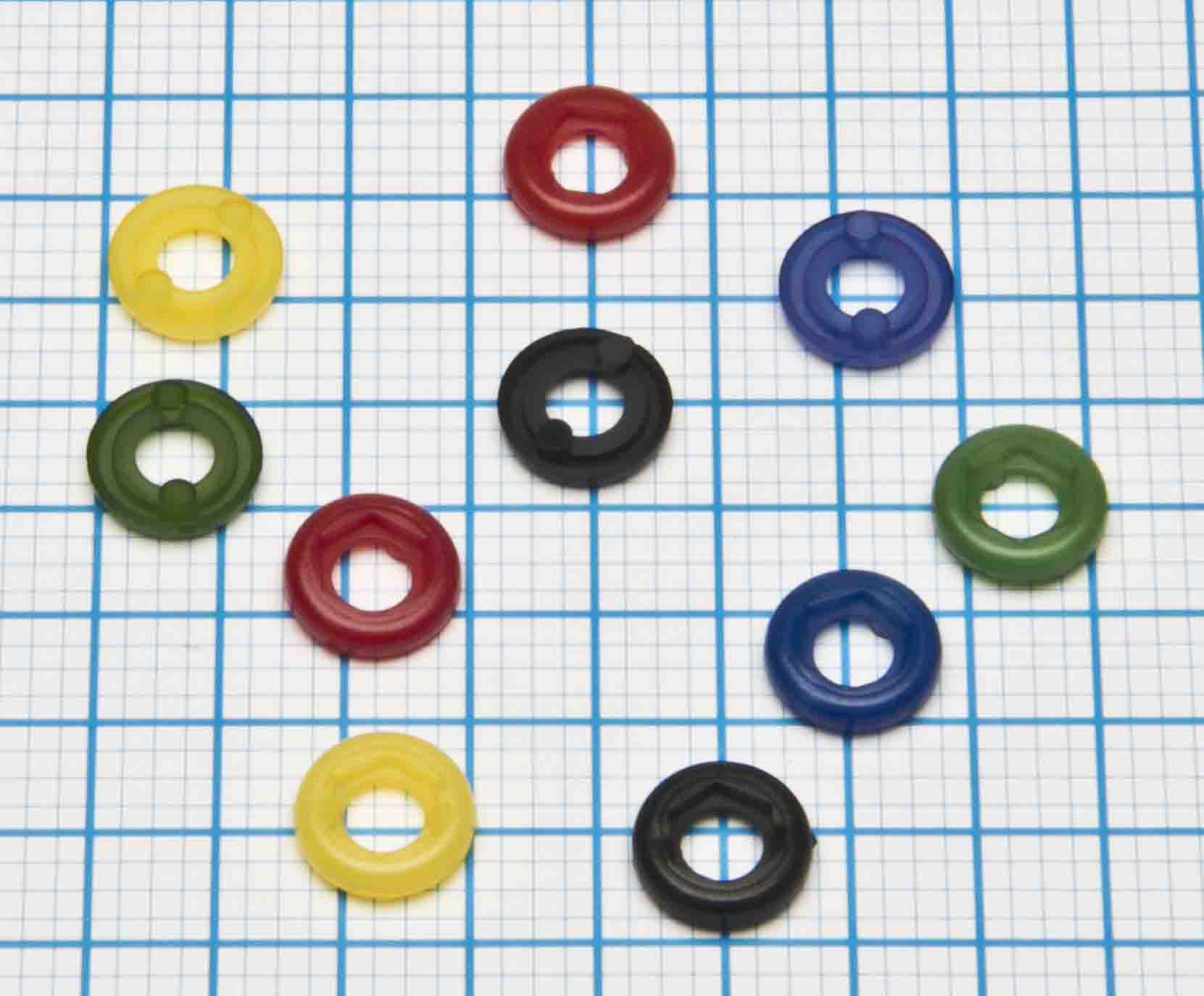

Coding Ring, Qty: 10	Coding Ring w/ Legs, Qty: 10
