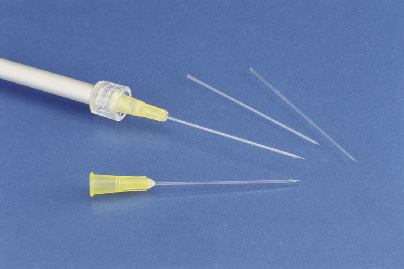

Variety of Pre-pulled Micropipettes Available

Eliminate the cost and trouble of making your own micropipettes — WPI can quickly supply your need for consistently sized pre-pulled glass micropipettes for injection of dyes or proteins into cells, oocytes and for many other biomedical laboratory applications. Tip diameters (ID) range from 0.1 to 10 micrometers. Micropipettes are available as plain shank or with luer fittings.

Schott Duran borosilicate glass
0.5 micrometer and smaller ID micropipettes include an internal glass fiber for easy filling
Tip inner diameter tolerance ±20%
Short taper yields high strength
Nominal length ≈ 50 mm
OD:ID = 1.33:1
Standard capillary outer diameters are 1.0 mm (thin-wall) or 1.14 mm
Every pipette individually tested and inspected
Vacuum packed

Silanized Tips (Luer Shank)

Silanization waterproofs the glass to retard water when inserting into cell. This will not let the outside fluid run down the pipette and get inside so easily.

Order code	Shank	Tip I.D.	Shank Length	Glass O.D.	Filament	Fire Polished
TIP01TW1F	Plain	0.1µm	—	1.0 mm Thin-Wall	Yes	No
TIP02TW1F	Plain	0.2µm	—	1.0 mm Thin-Wall	Yes	No
TIP03TW1F	Plain	0.3µm	—	1.0 mm Thin-Wall	Yes	No
	Plain	0.4µm	—	1.0 mm Thin-Wall	Yes	No
TIP05TW1F	Plain	0.5µm	—	1.0 mm Thin-Wall	Yes	No
TIP1TW1	Plain	1µm	—	1.0 mm Thin-Wall	No	Yes
TIP2TW1	Plain	2µm	—	1.0 mm Thin-Wall	No	Yes
TIP5TW1	Plain	5µm	—	1.0 mm Thin-Wall	No	Yes
TIP10TW1	Plain	10µm	—	1.0 mm Thin-Wall	No	Yes
TIP10XV119	Plain	10µm	—	1.14 mm A203XV glass *	No	Yes
TIP30TW1	Plain	30µm	—	1.0 mm Thin-Wall	No	Yes
TIP01TW1F-L	Luer	0.1µm	—	1.0 mm Thin-Wall	Yes	—
TIP02TW1F-L	Luer	0.2µm	—	1.0 mm Thin-Wall	Yes	—
TIP05TW1F-L	Luer	0.5µm	—	1.0 mm Thin-Wall	Yes	—
TIP1TW1-L	Luer	1µm	—	1.0 mm Thin-Wall	No	—
TIP2TW1-L	Luer	2µm	—	1.0 mm Thin-Wall	No	—
TIP5TW1-L	Luer	5µm	—	1.0 mm Thin-Wall	No	—
TIP10TW1-L	Luer	10µm	—	1.0 mm Thin-Wall	No	—
TIP30TW1-L	Luer	30µm	—	1.0 mm Thin-Wall	No	—
TIP5TW1LS01	Luer/Silanized	5µm	1 inch	1.0 mm Thin-Wall	No	—
TIP5TW1LS02	Luer/Silanized	5µm	2 inch	1.0 mm Thin-Wall	No	—
TIP10TW1LS01	Luer/Silanized	10µm	1 inch	1.0 mm Thin-Wall	No	—
TIP10TW1LS02	Luer/Silanized	10µm	2 inch	1.0 mm Thin-Wall	No	—
TIP30TW1LS01	Luer/Silanized	30µm	1 inch	1.0 mm Thin-Wall	No	—
TIP30TW1LS02	Luer/Silanized	30µm	2 inch	1.0 mm Thin-Wall	No	—
