Metal Electrode Selection Guide for Profile B

Profile B Microelectrodes

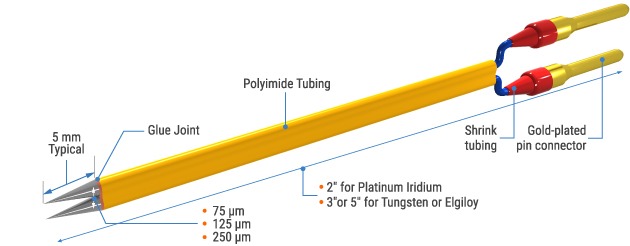

profile b

These electrodes are sold in packages of 10.

Tungsten Profile B Comparison Chart, 76 mm long, 0.216 mm shaft

Order codeLength Insulation
Thickness		Shaft
Diameter		Nominal
Impedance
±20%		Tip
Diameter 		Typical Use
TST33C05KT76mm3µm0.216 mm0.5 MΩ1µStereotrode / Bipolar, differential measurements - extra fine
TST33C10KT-B76mm 3µm0.216 mm1.0 MΩ 1µStereotrode / Bipolar, differential measurements - extra fine. Blunt tip.
TST33C10KTH
76mm 3µm0.216 mm1.0 MΩ 1µStereotrode / Bipolar, differential measurements - extra fine. Heat treated.
TST33C20KT76mm3µm 0.216 mm2.0 MΩ1µStereotrode / Bipolar, differential measurements - extra fine

Tungsten Profile B Comparison Chart, 76 mm long, 0.356 mm shaft

Order codeLength Insulation
Thickness		Shaft
Diameter		Nominal
Impedance
±20%		Tip
Diameter 		Typical Use
TST33A001KT76mm 3µm0.356 mm 0.01 MΩ1µStereotrode / Bipolar, differential measurements
TST33A05KT
76mm3µm0.356 mm 0.5 MΩ1µStereotrode / Bipolar, differential measurements
TST33A10KT76mm3µm0.356 mm1.0 MΩ1µStereotrode / Bipolar, differential measurements
TST33A20KT 76mm3µm0.356 mm2.0 MΩ 1µStereotrode / Bipolar, differential measurements

Tungsten Profile B Comparison Chart, 127 mm long, 0.356 mm shaft

Order codeLength Insulation
Thickness		Shaft
Diameter		Nominal
Impedance
±20%		Tip
Diameter 		Typical Use
TST53A05KT 127mm 3µm0.356 mm 0.5 MΩ 1-2µStereotrode / Bipolar, differential measurements
TST53A05KT-B 127mm 3µm0.356 mm0.5 MΩ 1-2µStereotrode / Bipolar, differential measurements. Blunt tip.
TST53A10KT127mm3µm0.356 mm1.0 MΩ1-2µStereotrode / Bipolar, differential measurements
