Stimulator/Isolator Comparison Chart

WPI offers a range of isolators and stimulators. Use the chart below to find the components that are compatible.

Isolators	Features	Input	Output	Compatible Stimulators
DLS100	Biphasic, Digital Analog Modeling	Digital from DS8000	0-100V 1μA - 10mA
A320	SIU/Built-in stimulator	TTL	0-100V 1μA - 10mA	A310

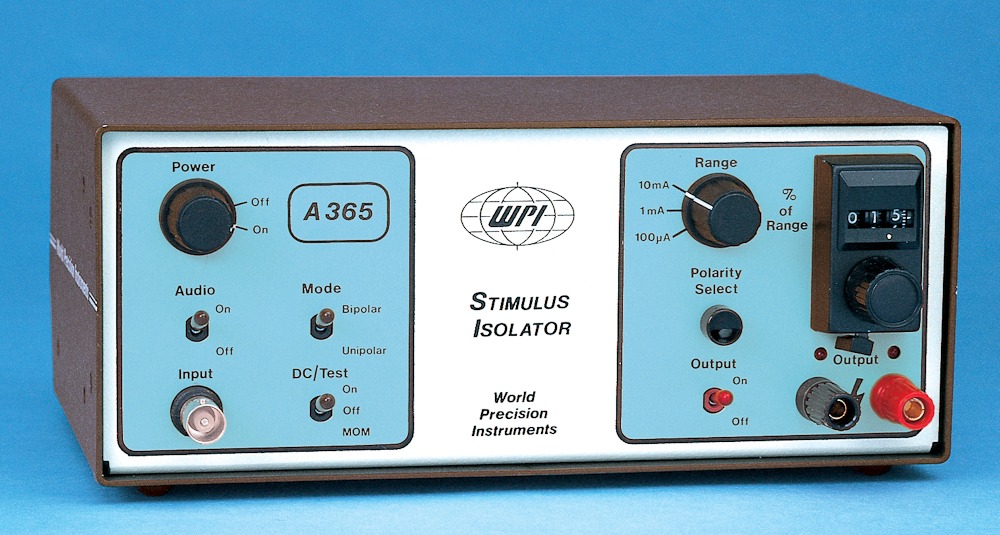

A365	Mono/Biphasic	TTL	±100V 1μA - 10mA	A310

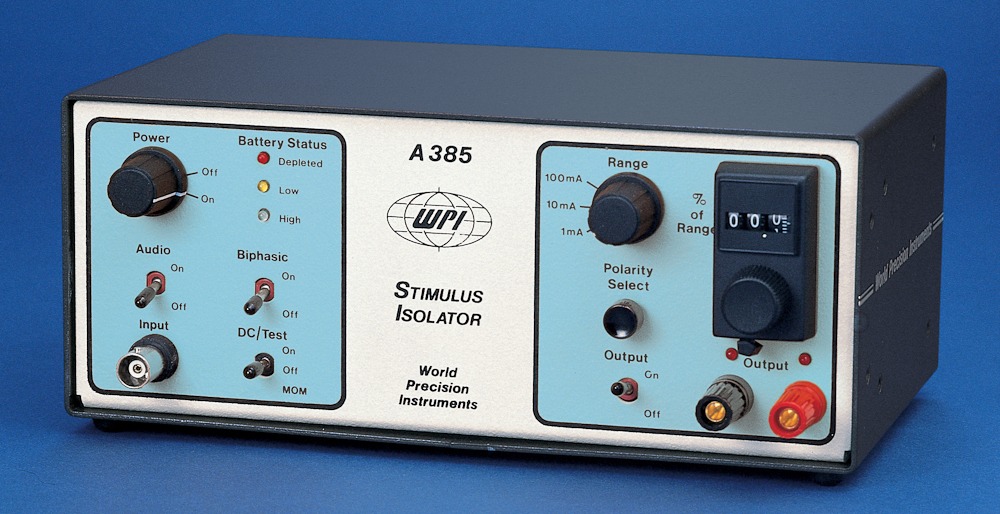

A385	High Current	TTL	±36V 10μA - 100mA	A310
A395	Analog	Analog ±10V	±70V 1μA - 10mA	A310
Duo773	Intracellular Amplifier	Analog 0-1V	±500nA	A310
