Vibration Free Workstation/Platforms Defined

WPI offers both vibration free workstations and platforms, and each is custom-built to meet your specifications. This article describes the options available and how to request a price quote for the unit you need.

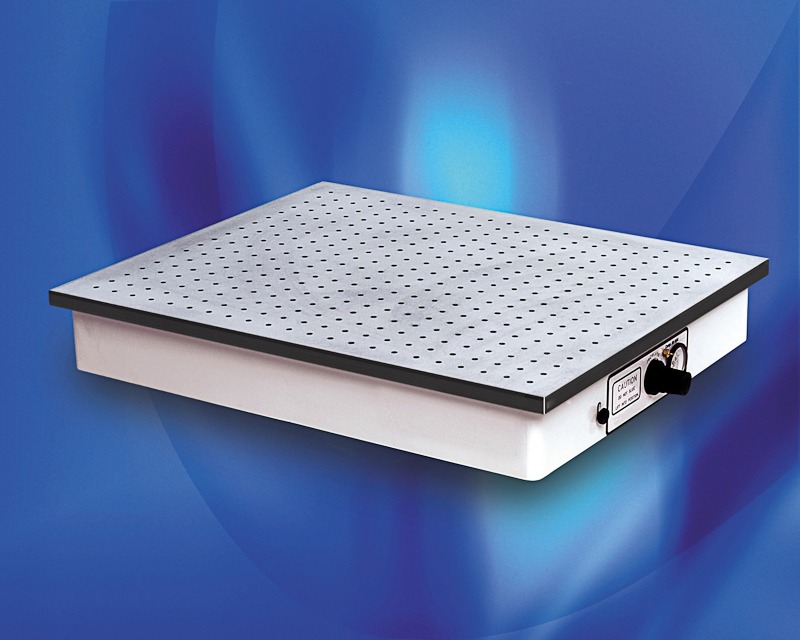

The vibration-free platform looks like the one shown (left). The workstation tables are similar. These vibration-free units offer vertical and horizontal vibration isolation, high performace active-air suspension and automatic leveling. The diagrams below show dimensions of the workstations.

Understanding Part Numbers ♦ Options Available ♦ Workstation Specifications ♦ Platform Specifications ♦ Performance Data

Understanding WPI Part Numbers

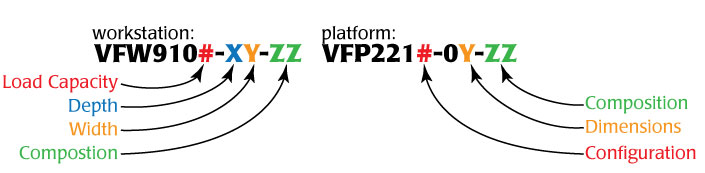

The part numbers define the load, dimensions and compostion of the platform or table as shown in the graphic below. Use the codes listed under "Options Available" to complete the part number for the unit you require. For example, if you want a workstation that will support up to 800 pounds, is 24" x 36" and is made of 2" composite with stainless laminate, you would order a VFW9001-11-22.

Options Available

Workstation Options
Gross Load Capacity (#) - This digit describes the maximum weight the table will support.
Depth (X) - The length of the tabletop from front to back.
Width (Y) - The width of the tabletop from side to side.
Compostion (ZZ) - Description of the tabletop surface.

Platform Options
Configuration(#) - This digit describes whether the platform has active air or passive air. *Enhanced is active air with enhanced horizontal isolation
Dimensions (Y) - This determines the size of the platform top
Compostion (ZZ) - Description of the platform surface.

WORKSTATION
Parameter	Specification	Part Number Code
Load Capacity (#)	Up to 800 lbs.	1
	Up to 1300 lbs.	2
Depth (X)	24"	1
	30"	0
	36"	2
Width (Y)	36"	1
	48"	2
	60"	3
	72"	4
Compostion (ZZ)	No table top	00
	2" Composite w/white plastic laminate	21
	2” Composite w/stainless laminate	22
	2” Composite w/black laminate	23
	2” Composite w/anti-static laminate	24
	4” VT Gray Granite (THIS COMPOSITION REQUIRES A 1300 LB LOAD CAPACITY)	30
	2” Honeycomb no holes	40
	2” SPILLPRUF Honeycomb ¼-20x1” centers	45
	2” SPILLPRUF Honeycomb M6 X 25mm centers	46
	4” Honeycomb no holes	80
	4” SPILLPRUF Honeycomb ¼-20x1” centers	85
	4” SPILLPRUF Honeycomb M6 X 25mm centers	86

PLATFORM
Parameter	Specification	Part Number Code
Configuration(#)	Passive Air	0
	Active Air	2
	Active Air (Enhanced)*	4
Dimensions (Y)	20x24"	1
	24x30" (2212 only)	2
	24x36" (2212 only)	3
	16x19" (2210 or 2212)	4
Compostion (ZZ)	White plastic laminate	11
	Ferromagnetic stainless steel	12
	Black plastic laminate	13
	White antistatic laminate	14
	Ferromagnetic stainless steel with 1/4-20x1" centers SPILLPRUF	22
	Ferromagnetic stainless steel with 1/4-20x0.5" centers SPILLPRUF MaxxAlign	25
	Ferromagnetic stainless steel with M6 holes x25mm centers SPILLPRUF	32
	Ferromagnetic stainless steel with M6 holes x12.5mm centers SPILLPRUF MaxxAlign	35
Optional Accessories	Hand Pump	HP
	Portable Air Compressor	PAC

Workstation Specifications

Platfom Specifications

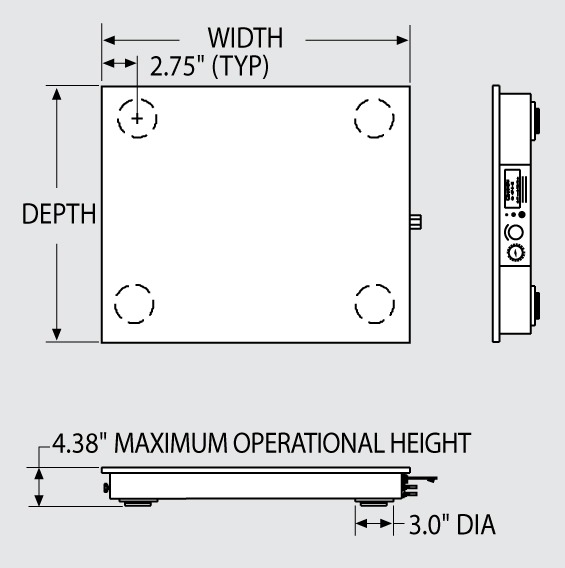

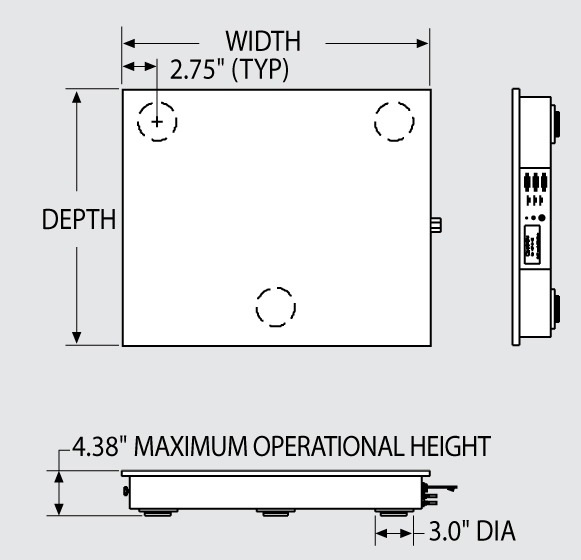

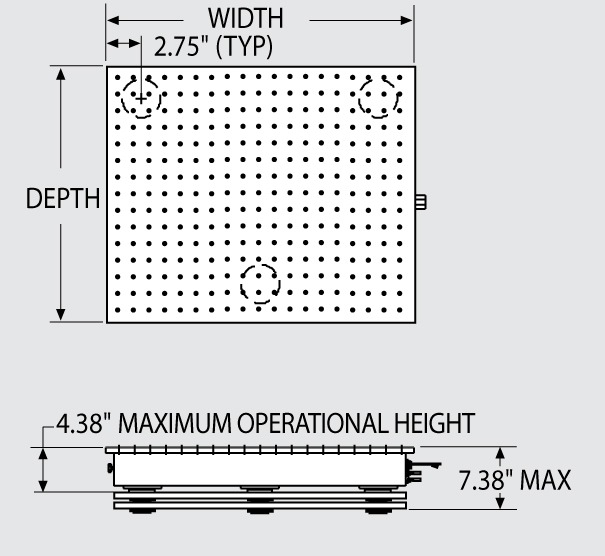

VFP2210-01, VFP2210-04, VFP2212-01, VPF2212-04	VFP2212-02, VFP2212-03	VFP-2214-01-22

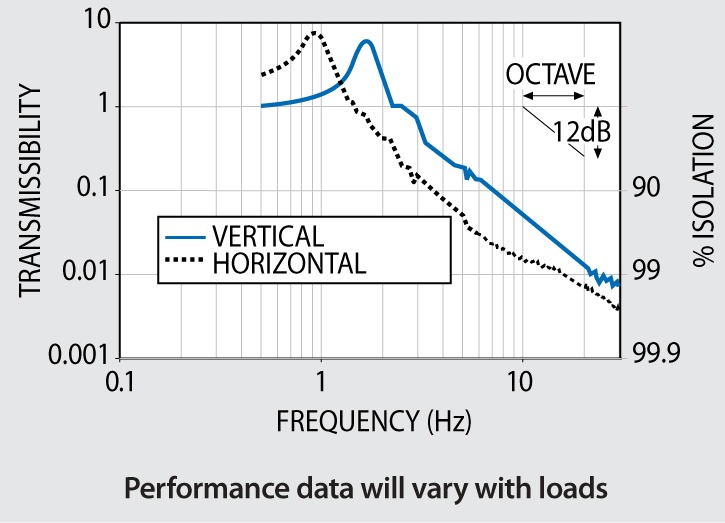

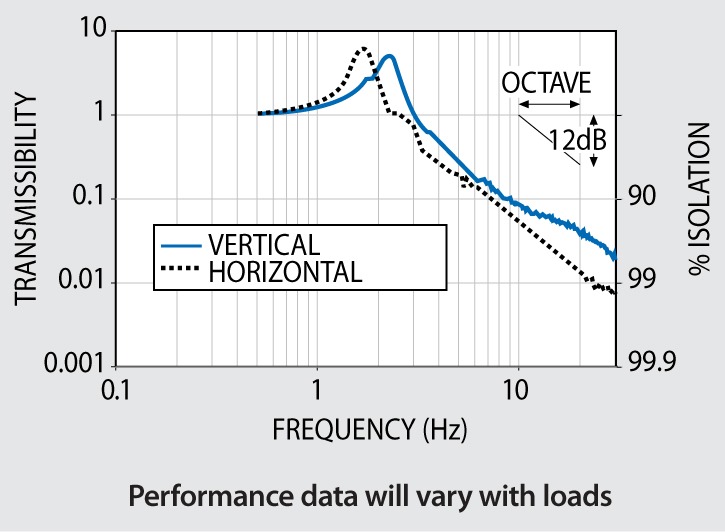

VFP2210/VFP2212 Performance	VFP2214 Performance

Performance Data

Minimum Load at 20 psi		Workstation	Platform
Vertical Natural Frequency		1.9 Hz	2.3Hz
	Isolation Efficiency at 5Hz	70%	52%
	Isolation Efficiency at 10Hz	90%	83%
Horizontal Natural Frequency		2.2Hz	2.9Hz
	Isolation Efficiency at 5Hz	64%	40%
	Isolation Efficiency at 10Hz	90%	92%
Maximum Load at 80 psi
Vertical Natural Frequency		1.5 Hz	2.1Hz
	Isolation Efficiency at 5Hz	85%	70%
	Isolation Efficiency at 10Hz	97%	91%
Horizontal Natural Frequency		1.2 Hz	1.8Hz
	Isolation Efficiency at 5Hz	91%	81%
	Isolation Efficiency at 10Hz	97%	95%
Gross Load Capacity at 80 psi
		VFW9101: 800 lbs. (363kg)	VFP2212-02/03: 450lbs. (204kg)
		VFW9102: 1300 lbs. (590Kg)	Other Platforms: 200lbs. (91kg)
Finish
	Standard	Linear White Polyurethane
	Class 10	White Epoxy, Powder Coat

NOTE: When requesting a quote for a vibration-free workstation and/or platform, please provide dimensions of the components and confirm the approximate weight of your test set-up.
