Choosing a Cuvette: Optical Glass or Quartz

This chart allows you to compare the various spectroscopy cuvettes that are available in nine different styles.

Cuvette Styles

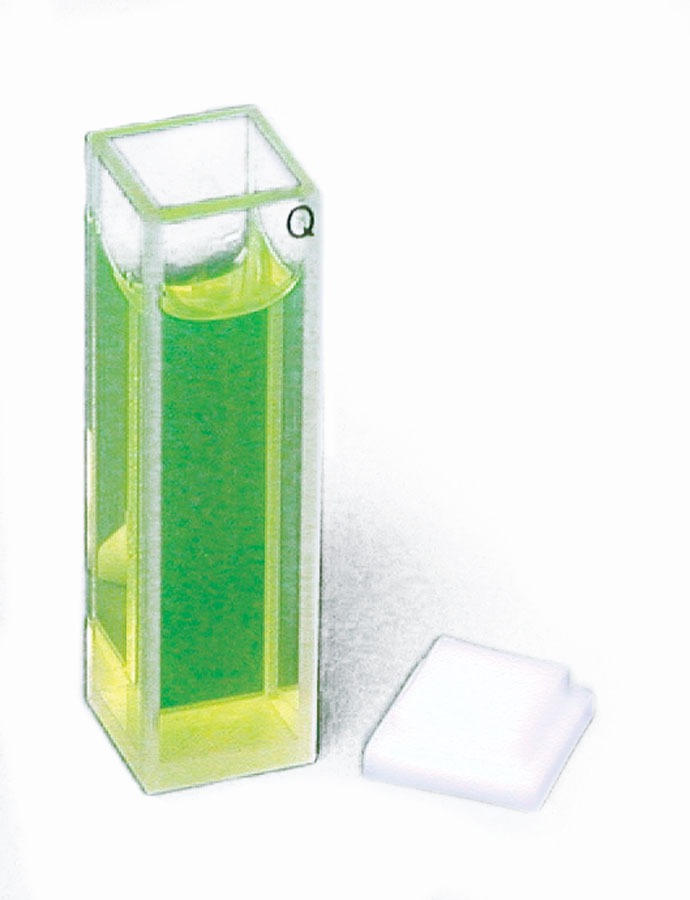

Cuvette Styles A

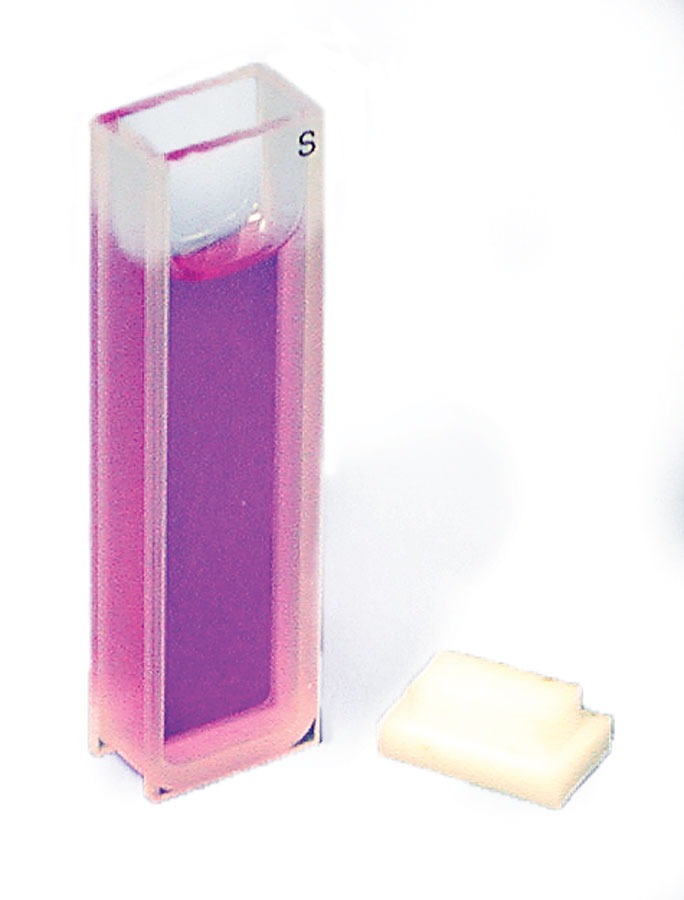

Style A		Cuvette Styles B

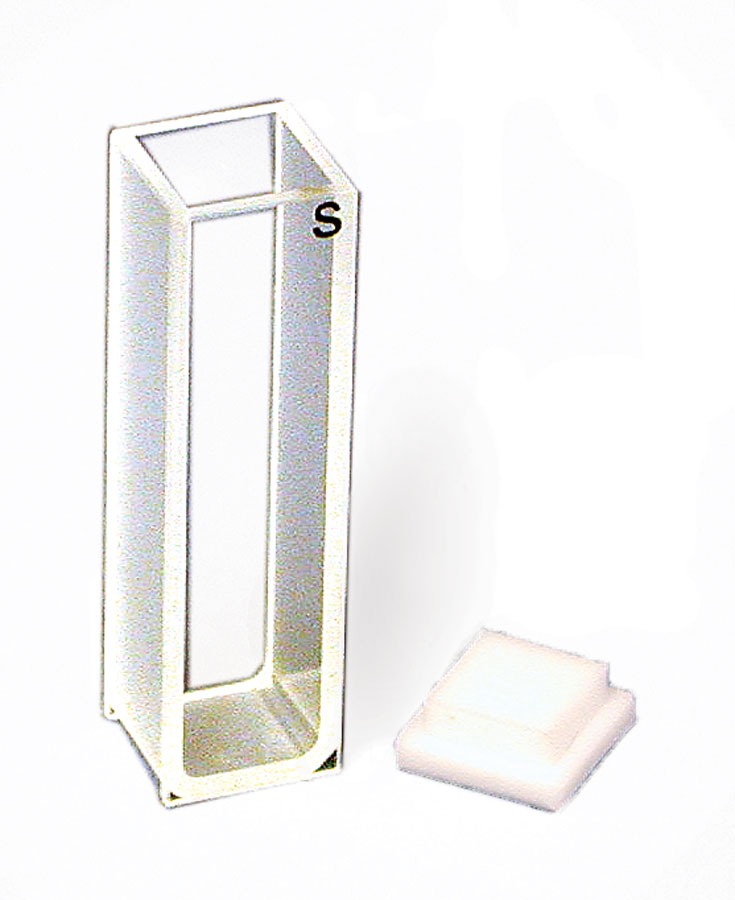

Style B		Cuvette Styles C

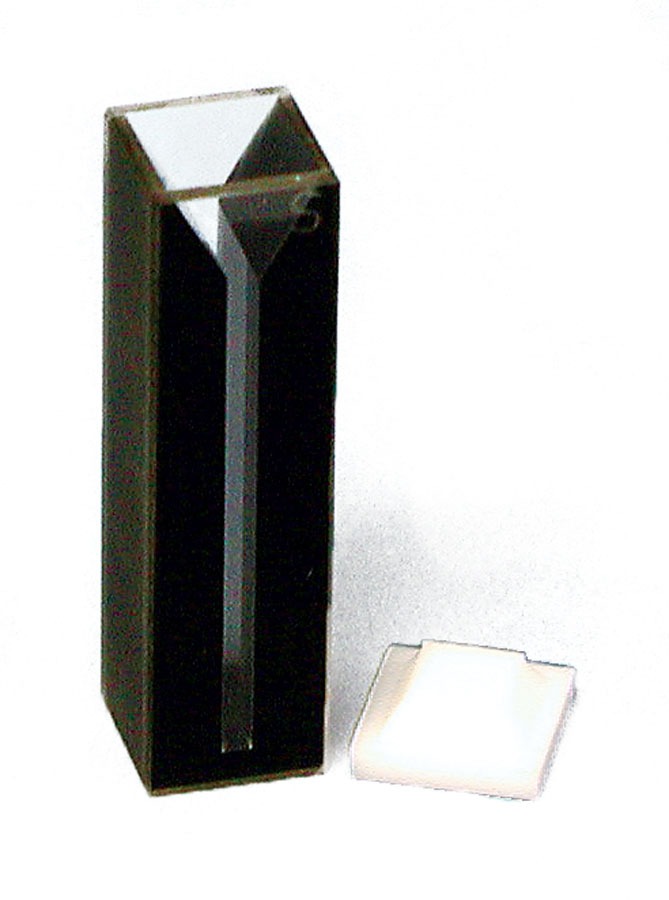

Style C		Cuvette Styles D
Style D

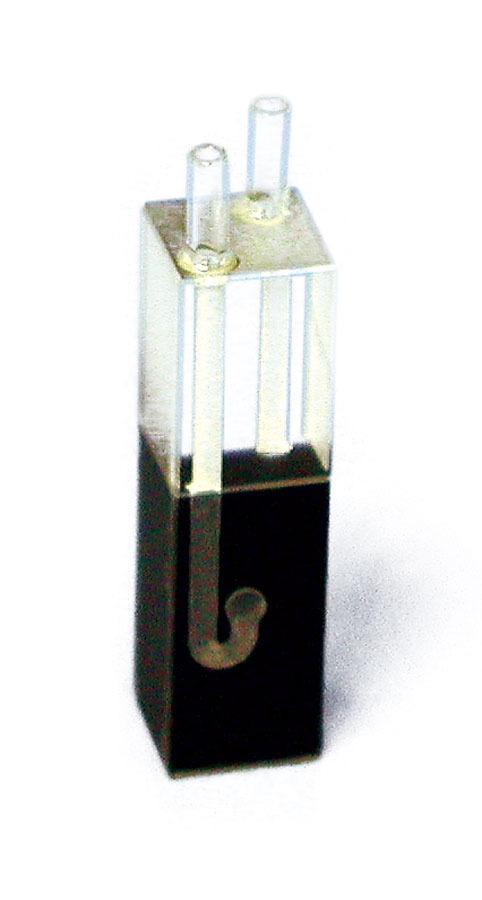

Cuvette Styles E
Style E		Cuvette Styles F

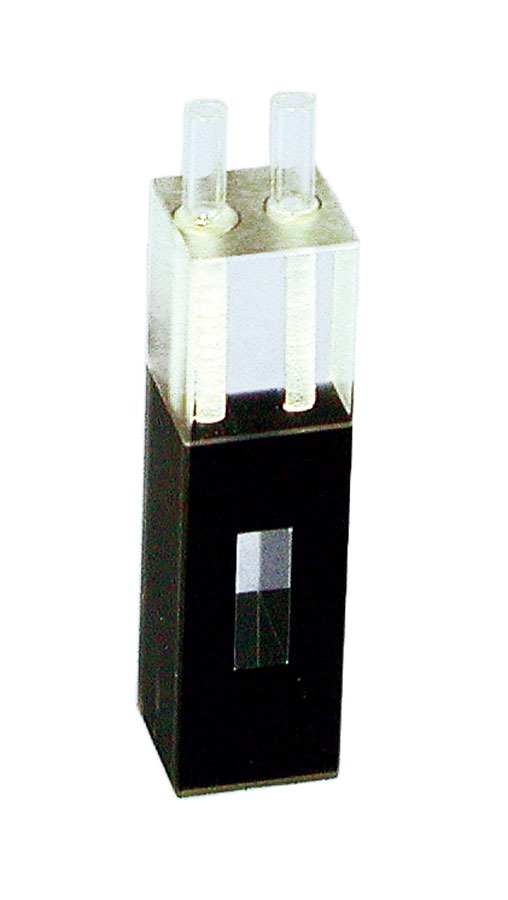

Style F		Cuvette Styles H

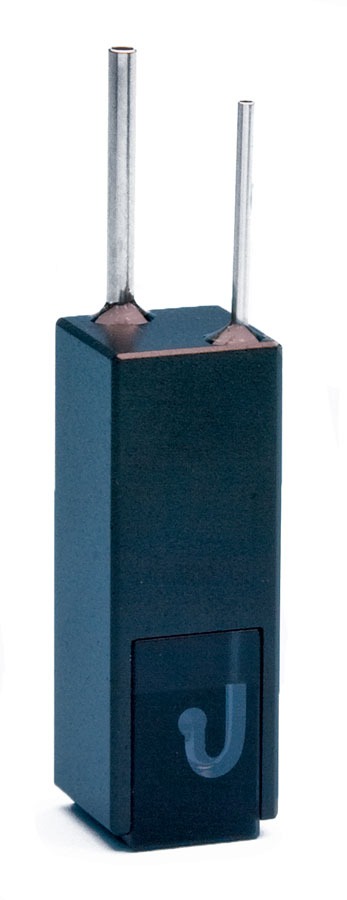

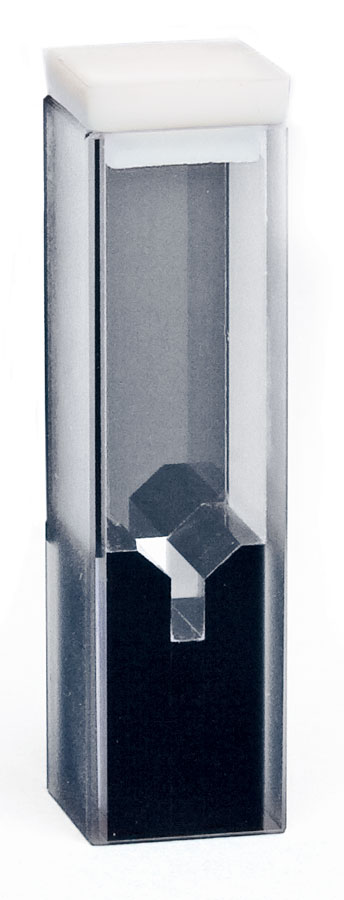

Style H		Cuvette Styles J
StyleJ

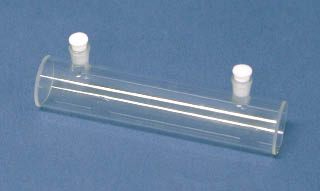

Cuvette Styles G
Style G

Cuvette Comparison Chart

Order codeStyle material Polished windows path [mm] Dimensions [mm] volume [mL] Beam width [mm]
standard rectangular cuvettes
CUV2101-1 BQuartz213.5x12.5x450.3510
CUV2102-1 BQuartz224.5x12.5x45  0.7  10
CUV2011-1 BQuartz257.5x12.5x451.710
CUV1022-10 COptical Glass21012.5x12.5x453.510
CUV2012-1 CQuartz21012.5x12.5x453.510
CUV2105-1CQuartz  2  20  22.5x12.5x457  10
CUV2106-1CQuartz  2  30  32.5x12.5x45  10.5  10
CUV2107-1CQuartz  2  40  42.5x12.5x45  14  10
CUV2108-1CQuartz  2  50  52.5x12.5x45  17.5  10
Self masking Semi micro Cell Cuvette
CUV2023-1 DQuartz257.5x12.5x450.74
CUV2031-1 DQuartz21012.5x12.5x451.44
CUV2025-1 DQuartz22022.5x12.5x452.84
CUV2028-1 DQuartz25052.5x12.5x4574
CUV2032-1 DQuartz21012.5x12.5x4513
CUV2033-1 DQuartz21012.5x12.5x450.72
CUV2034-1 DQuartz21012.5x12.5x450.351
Self masking continuous flowthrough cell, Z=15 mm
CUV2063-1 EQuartz257.4x12.5x450.035diameter 3
CUV2061-1 EQuartz21012.5x12.5x450.07diameter 3
CUV2065-1 EQuartz22022.6x12.5x450.14diameter 3
CUV2066-1 EQuartz23032.6x12.4x450.21diameter 3
CUV2062-1FQuartz21012.5x12.5x450.484x12
Self masking continuous flow through cell, small input, large output, Z=8.5 mm
CUV2614-1 HQuartz21012.4x12.4x35.60.03diameter 2
Micro Cell with black walls
CUV2674-1 JQuartz21012.5x12.5x450.052
Fluorescence
CUV2051-1 AQuartz41012.5x12.5x453.510
CUV2052-1 AQuartz41012.5x12.5x451.44
Long Path Cuvette
CUV2071-1 GQuartz2100102.5 x 22 diameter2819
