Choosing Cables and Connectors

Choosing the right parts for your application is critical. Below you will find a table comparing many common parts to help you determine just what you need.

Cables

Order code	Application/Description	Connector A	Connector B	Cable Length
2851	Standard BNC cable	BNC (male)	BNC (male)	5 ft 2 in

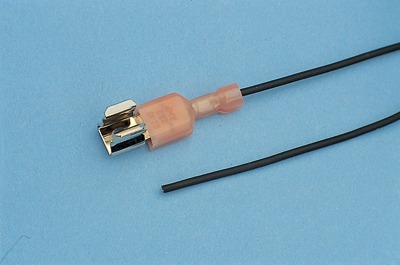

3294	Ground wire for DAM80 probe	Clip	none	3 ft (0.9 m)

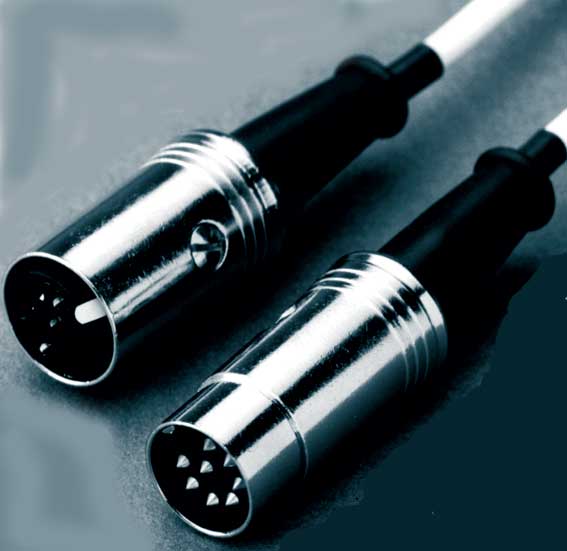

3491	Extension for any 8-pin DIN	DIN (male)	DIN (female)	5 ft (1.5 m)

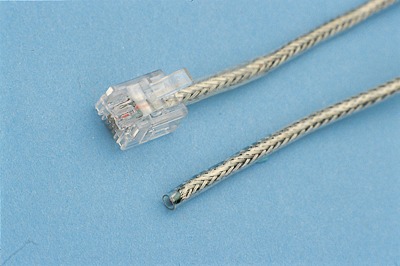

3517	DAM50, DAM60, DAM70, shielded (two cables/pkg)	Modular phone plug, 4 wire	none	3 ft (0.9 m)

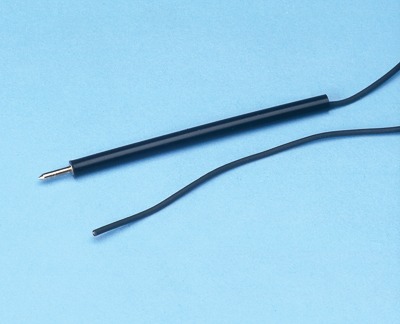

3578	Adapter cable for Ag/AgCl pellets	2 mm pin	none	5 ft (1.5 m)

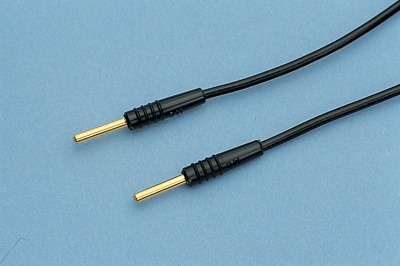

5371	Low-noise cable for microelectrode holders	2 mm gold pin	2 mm gold pin	2 ft (0.6 m)

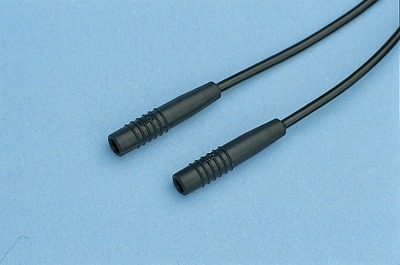

5372	Low-noise cable for microelectrode holders	2 mm gold jack	2 mm gold jack	2 ft (0.6 m)

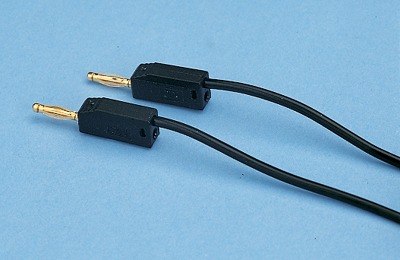

5373	Low-noise cable for microelectrode holders	Combination pin/jack	Combination pin/jack	2 ft (0.6 m)

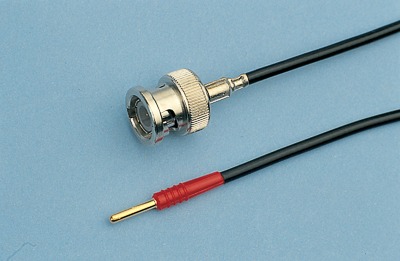

5374	Low-noise cable for microelectrode holders	BNC (male)	2 mm gold pin	4 ft (1.2 m)

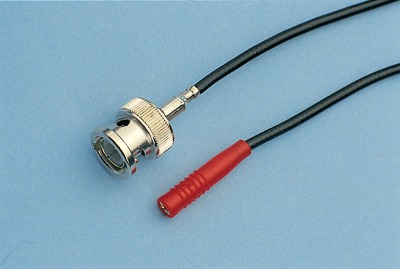

5375	Low-noise cable for microelectrode holders	BNC (male)	2 mm gold jack	4 ft (1.2 m)

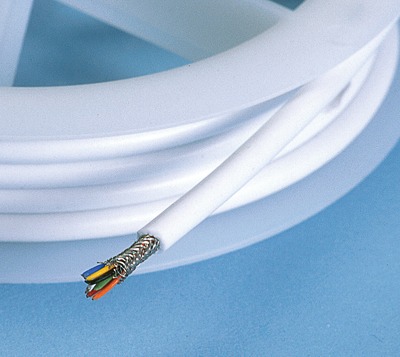

5385	Cable, shielded transducer stock	none	none	25 ft (7.6 m)

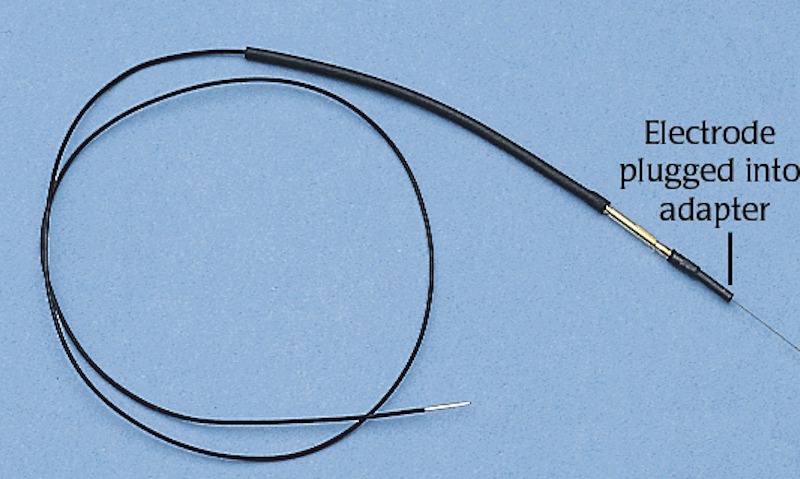

5470	0.031" Jack, 28 ga. wire, 12" (pkg of 4)			1 ft

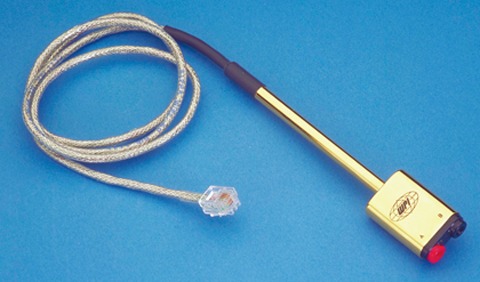

5489	Optional DAM50 Probe

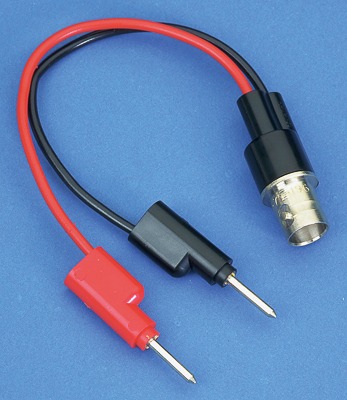

13451	Adapter, Iso-DAM8	BNC (female)	two 2 mm pins	0.5 ft (15 cm)

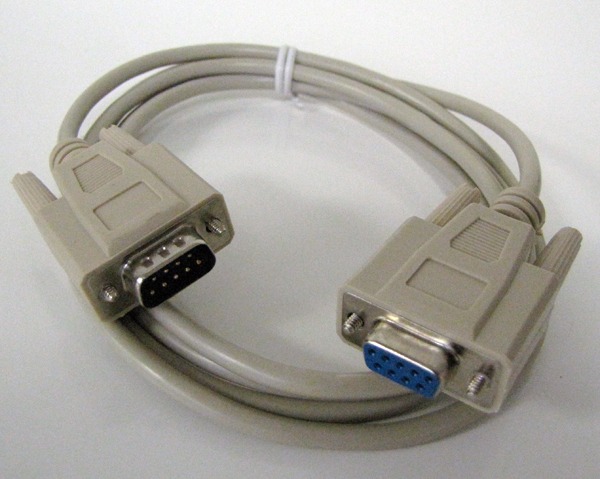

13555	Serial Cable	DB9 (male)	DB9 (female)	6 ft (1.8 m)

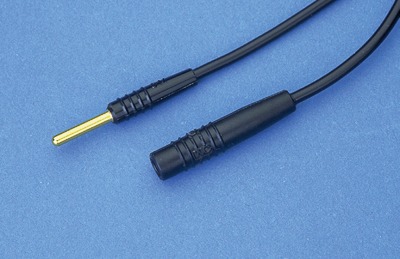

13620	Low-noise cable for microelectrode holders	2 mm gold pin	2 mm gold jack	2 ft (0.6 m)

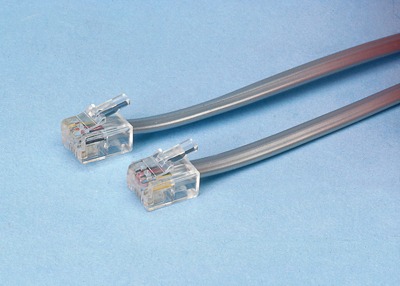

13685	SP Series pump-to-pump linking cable	Modular phone plug	Modular phone plug	7 ft (2.1 m)

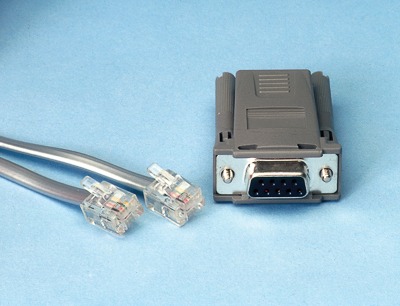

15623	Serial cable and adapter, SP Series pump	SP Pump	IBM 9-pin “D” connector	5 ft (1.5 m)

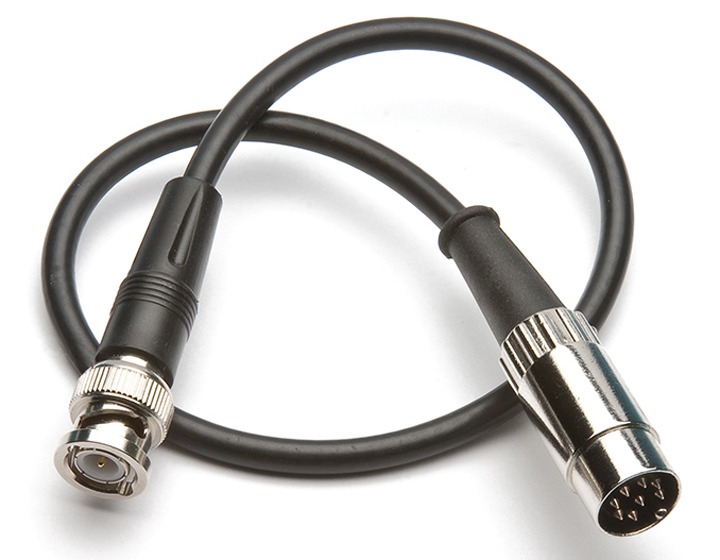

300344	Cable, LAB-TRAX-4-24T	DIN8	BNC

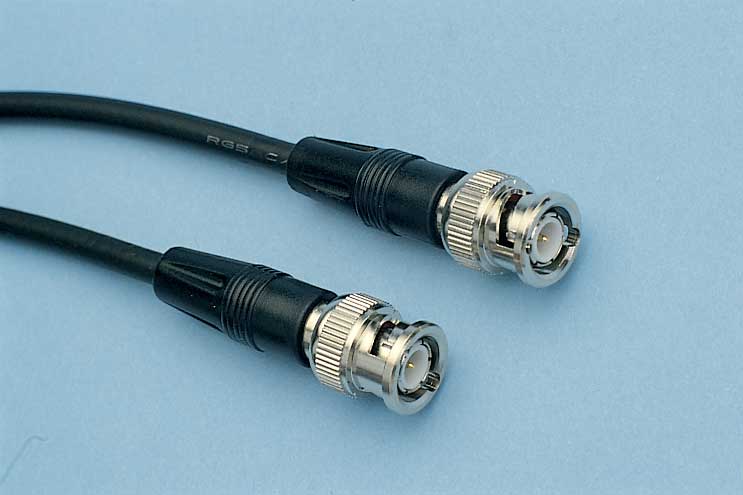

500184	Standard BNC Cable	BNC (male)	BNC (male)	10 ft (3 m)
500257	Standard BNC Cable	BNC (male)	BNC (male)	0.5 ft (15 cm)
500258	Standard BNC Cable	BNC (male)	BNC (male)	1 ft (30 cm)
500259	Standard BNC Cable	BNC (male)	BNC (male)	1.5 ft(46 cm)

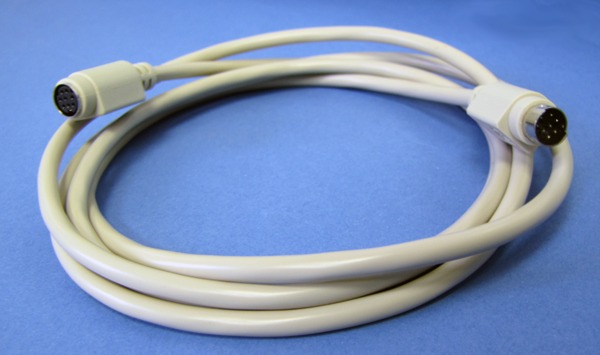

503301	Cable, Extension	8-pin miniDIN (male)	8-pin miniDIN (female)	10 ft (3 m)
503536	Cable, USB	USB (male)	USB (female)	10 ft (3 m)

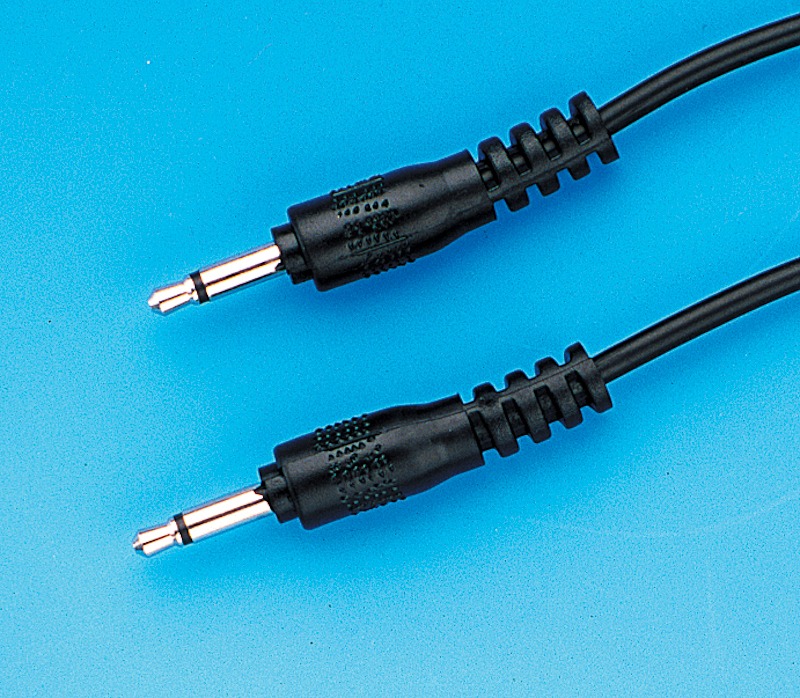

CBL100	MiniPhone Patch Cable	3.5 mm MiniPhone plug	3.5 mm MiniPhone plug	6 ft (1.8 m)
CBL102	DAM Series, PM Series	3.5 mmMiniPhone plug	BNC (male)	6 ft (1.8 m)

 Connectors

Order code	Application/Description	Connector A	Connector B	Cable Length
2026-10	2 mm socket, unwired (pkg of 10) (Not Shown)	2 mm socket	unwired	none
2033	Black Insulated Mini Banana Plug
2034	Red Insulated Mini Banana Plug
2035	Uninsulated Mini Banana Plug

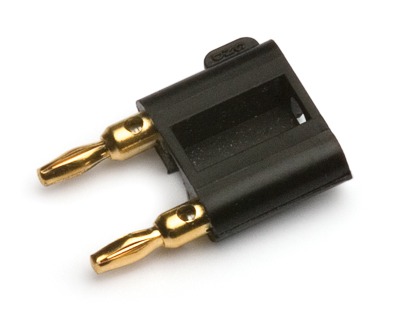

3142	Mini-Banana Adapter	Screw Terminals	Dual Mini-Banana	none

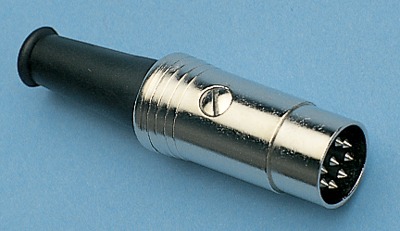

3161	Connector for input to TBM4M and BP-1	DIN (male)	unwired	none

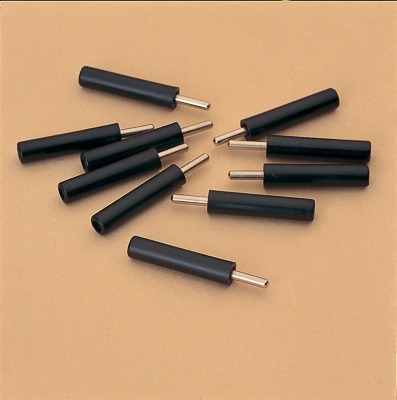

3417-10	2 mm plug, unwired (pkg of 10)	2 mm pin	unwired	none

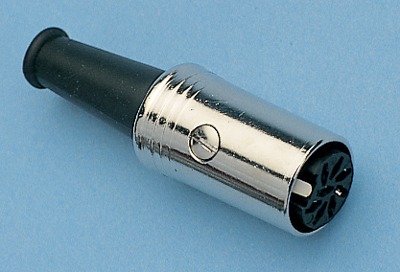

3492	Connector, adapts WPI transducers to non-WPI equipment	DIN (female)	unwired	none

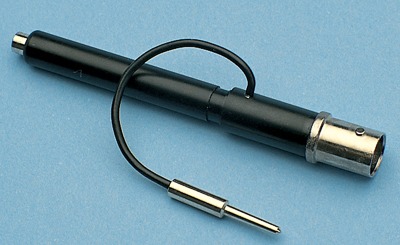

3508	Adapts BNC pH electrode to pH meter with “U.S. Standard” input	BNC (male)	US Standard	none

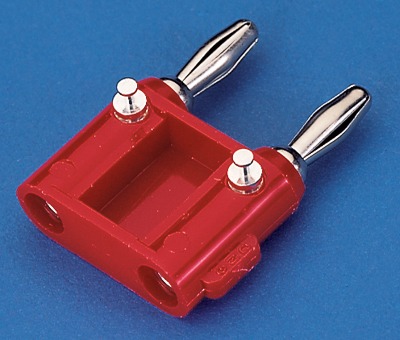

3670	Double banana plug with solder turret terminals	Dual Banana (male)	Dual Banana (female)	none
5447	Electrode Adapter for DAM50 Bioamplifier
5468	2mm receptacle to 0.031" jack (for Omega-TipZ)

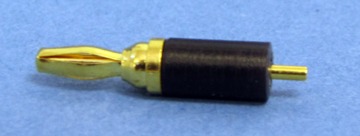

5469	Adapter Electrode 0.031 for DAM80P

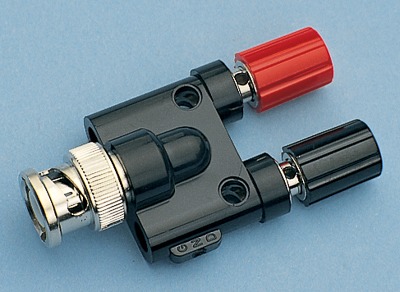

13324	Adapter, Dual Banana/BNC	Double-banana (female)	BNC (male)	none

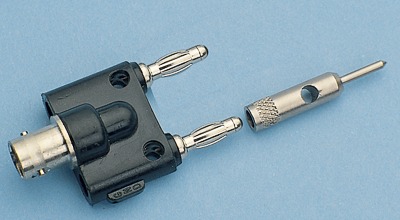

13347	BNC to Double Banana Connector	Double-banana (male)	BNC (female)	none

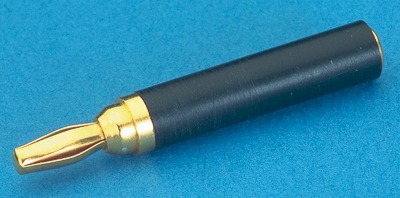

13388	Electrode adapter for DAM probes	Miniature banana (male)	2 mm jack	none
13451	Adapter, Iso-DAM8	BNC (female)	two 2 mm pins	0.5 ft (15 cm)

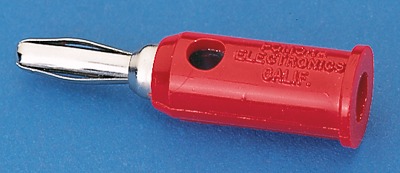

13776	Adapter, reference electrode to ground jack	Banana (male)	2 mm jack	none

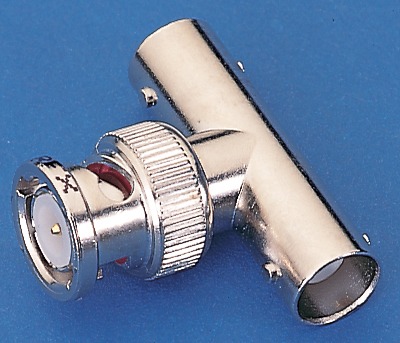

13854	BNC T-connector, male to female	BNC (female)	BNC (female)	none

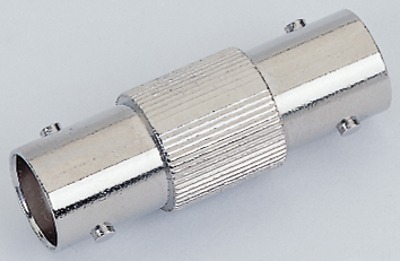

14254	BNC Straight Adapter	BNC (female)	BNC (female)	none
15623	Serial cable and adapter, SP Series pump	SP Pump	IBM 9-pin “D” connector	5 ft (1.5 m)

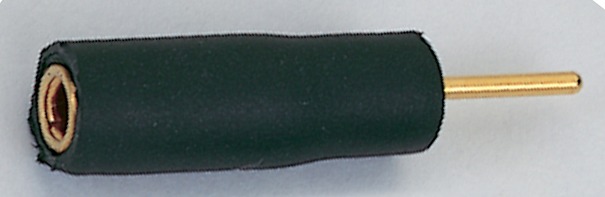

15975	Adapter	2 mm socket	1 mm pin	none

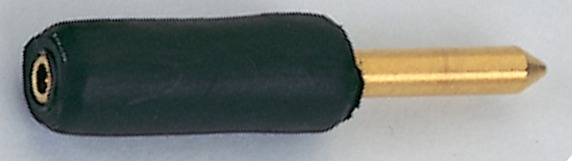

15976	Adapter	1 mm socket	2 mm pin	none

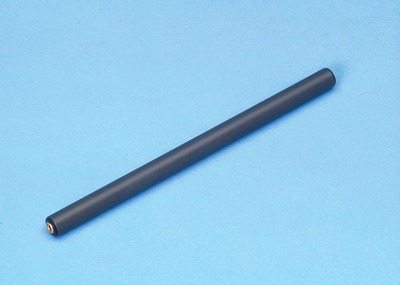

300040	Adapter Extension	2 mm socket	2 mm socket	0.3 ft (10 cm)

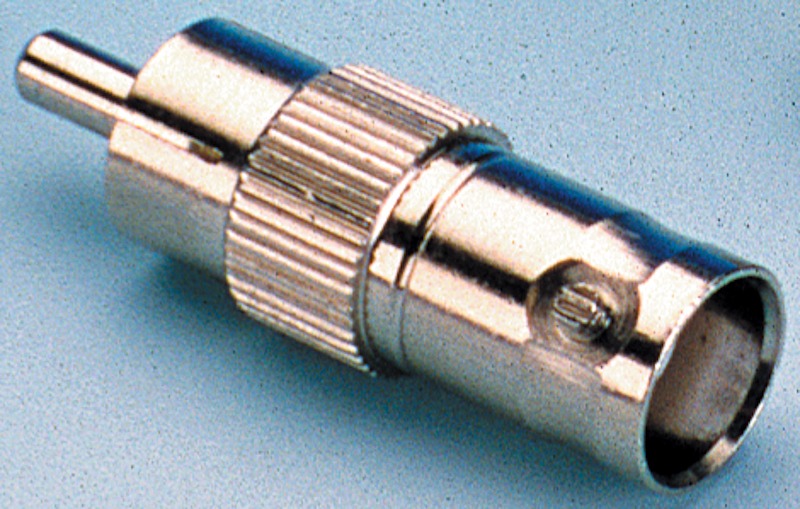

500082	Adapter BNC/RCA MM	BNC (female)	RCA (male)	none
300102	Adapter Extension	2 mm socket	0.31 socket	0.3 ft (10 cm)

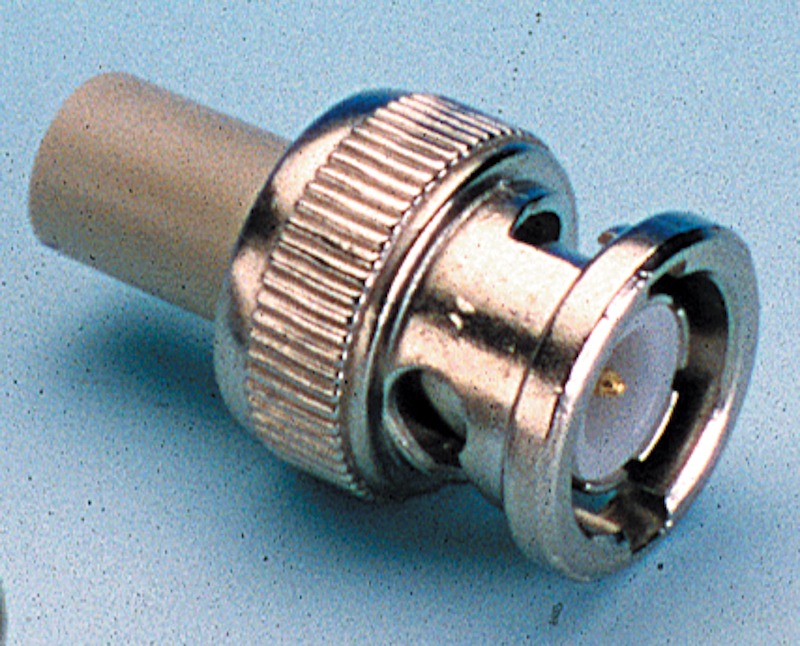

500128	BNC Zero Ohm Terminator	BNC (male)	none	none

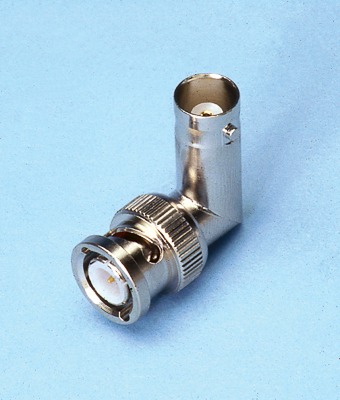

500256	BNC Right Angle Adapter	BNC (male)	BNC (female)	none
